The Dolphin 399727 Prolite 12 V / 25 Ah Battery Charger is a compact, silent, and high-efficiency charger with Bluetooth connectivity and support for multiple battery types including LiFeSO4. It features a three-stage charging profile, natural convection cooling, IP22 protection, and wall-mount installation with anodized aluminum housing.
- Description
- Ask a Question
-

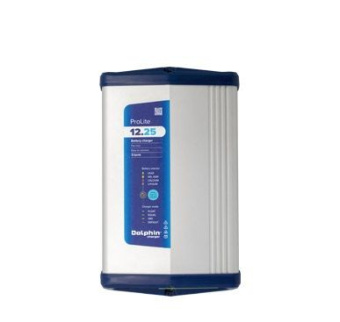

Dolphin 399727 - Prolite 12 V / 25 Ah Battery Charger IP22
The Dolphin Prolite 12 V / 25 Ah Battery Charger is a smart, compact, and silent charging solution designed for modern marine applications. Featuring advanced charging technology, high efficiency, and a fan-less design, this charger is ideal for sailboats, sport fishing boats, and other pleasure craft where space, reliability, and quiet operation are essential.
Key Features
- Smart charger with integrated Bluetooth interface.
- Compatible with the Dolphin Connect mobile application.
- Fan-less and silent operation using natural convection cooling.
- High efficiency with more than 91% power conversion.
- Compatible with all battery types, including Lithium LiFeSO4.
Input Specifications
Input Voltage 115 / 230 V (+/-10%) Frequency 50 / 60 Hz (+/-10%) Power Factor (Cos φ) > 0.9 Efficiency > 91% Max Current 115V / 230V 4 A / 2 A Fuse T6.3A (6.3 x 32 mm)
Output Specifications
Number Of Outputs 3 Charging Curves Open Lead Acid / Lead Calcium / AGM-GEL / Lithium LiFeSO4 + BMS Charging Profile 3 Stages I.Uo.U Max Output Current 25 A (+/-5%) Voltage Share +/-2% Ripple < 1% (BW < 20 MHz) Output Fuse F30A Mini Blade
Protection And Safety
Protections Output current limiting, short circuit, overload voltage, reverse polarity, over temperature Safety Standards EN 60335-1, EN 60335-2-29 EMC Standards EN 55014-1, EN 55014-2, ECE R10
General Specifications
Display Tri-colour LED display Control Front panel push button Operating Temperature -10°C to +55°C (automatic derating) Storage Temperature -20°C to +70°C Humidity 10% to 95% (without condensation) IP Rating IP22 Ventilation Natural convection Housing Anodized extruded aluminium Mounting Wall mounted, 2 x M4 screws Dimensions (D x W x H) 140 x 70 x 245 mm Weight 1.4 kg AC Connection 770.813 Wago Winsta DC Connection PC6-16/4 Phoenix Contact CAN Bus No
Brand: Dolphin
-
