The Blue Sea 1733200 Mini OLED DC Voltmeter is a compact voltage meter for 12/24V systems with 8–36V DC input range, 0.01 resolution, and ±1.0% accuracy. Designed for installation in a standard 1-1/8" (28.58 mm) panel hole, it features a waterproof daylight-readable OLED display, reverse polarity protection, 15 mA operating current, operating temperature −40°C to 70°C, and a 10,000-hour lifecycle. Weight: 0.20 lb (0.09 kg).
- Description
- Ask a Question
-

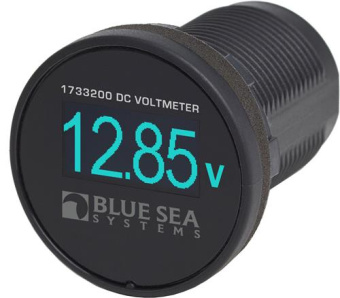

Blue Sea 1733200 – Mini OLED DC Voltmeter Blue, 8–36V Input, ±1% Accuracy, Panel Cutout 1-1/8" (28.58 mm)
The Blue Sea 1733200 Mini OLED DC Voltmeter is designed for accurate monitoring of DC voltage in marine and vehicle electrical systems. Its bright OLED display is daylight readable and waterproof, ensuring clear visibility in demanding environments. The compact design allows installation in tight spaces while using a standard mounting hole size for easy integration.
Key Features
- Measures DC voltage with high precision
- Bright OLED display readable in daylight
- Waterproof construction
- Reverse polarity protection
- Compact design for flexible installation
- Fits standard 1-1/8 in (28.58 mm) mounting hole
Technical Specifications
Model 1733200 Meter Type Voltage Display Color Blue Nominal Voltage 12V / 24V DC Input Voltage Range 8–36V DC Resolution 0.01 Accuracy ±1.0% Operating Current 15 mA Operating Temperature -40°C to 70°C (-40°F to 158°F) Mounting Cutout 1-1/8 in (28.58 mm) Lifecycle 10,000 hours Weight 0.20 lb (0.09 kg)
Certifications
- CE Certified
- IP66 Rated
- UKCA Marking
-
