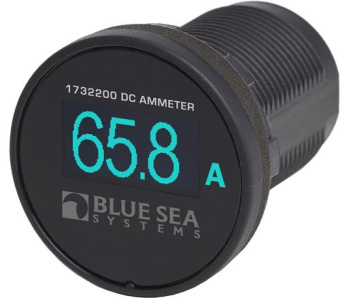

Blue Sea 1732200 – Mini OLED DC Ammeter Blue, -100A to 100A, 12/24V, Panel Cutout 1-1/8" (28.58 mm)

ID 1224574

$ 151.87

1-2 weeks delivery time

- +

Add to cart

The Blue Sea 1732200 Mini OLED DC Ammeter is a compact current meter for 12/24V systems with 8–36V input range, measuring −100A to 100A DC with 0.1A resolution and ±2% accuracy. Designed for installation in a standard 1-1/8" (28.58 mm) panel hole, it features a waterproof daylight-readable OLED display, reverse polarity protection, 110A intermittent rating, 175A cranking rating (30 sec), operating temperature −40°C to 70°C, and 15 mA operating current. Weight: 0.70 lb (0.32 kg).

Description
Ask a Question

Blue Sea 1732200 – Mini OLED DC Ammeter Blue, -100A to 100A, 12/24V, Panel Cutout 1-1/8" (28.58 mm)

The Blue Sea 1732200 Mini OLED DC Ammeter is a compact electrical monitoring device designed to measure DC current in marine and vehicle systems. Featuring a bright, waterproof, daylight-readable OLED display, it provides precise amperage readings from -100A to 100A. Its small form factor allows installation in virtually any convenient location while using a standard panel cutout size for easy mounting.

Key Features

Measures DC current from −100A to 100A
Bright OLED display readable in daylight
Waterproof construction
Compact design for flexible mounting locations
Fits standard 1-1/8 in (28.58 mm) mounting hole
Supports positive or negative side wiring
Reverse polarity protection
Resolution of 0.1A with ±2% accuracy

Technical Specifications

Model	1732200
Meter Type	Current (Ammeter)
Display Color	Blue
Measurement Range	-100A to 100A DC
Resolution	0.1A
Accuracy	±2%
Nominal Voltage	12V / 24V DC
Input Voltage Range	8–36V DC
Intermittent Rating	110A
Cranking Rating (30 sec)	175A
Operating Current	15 mA
Operating Temperature	-40°C to 70°C (-40°F to 158°F)
Mounting Cutout	1-1/8 in (28.58 mm)
Lifecycle	10,000 hours
Weight	0.70 lb (0.32 kg)

Certifications

CE Certified
IP66 Rated
UKCA Marking
