The Blue Sea 1830 M2 DC Multimeter with SoC accurately monitors the state of charge of a single battery bank while measuring three voltages and one current. It supports programmable shunt ratios, includes a 500A shunt, provides external relay activation, and operates across 12V, 24V, and 48V DC systems.
- Description
- Ask a Question
-

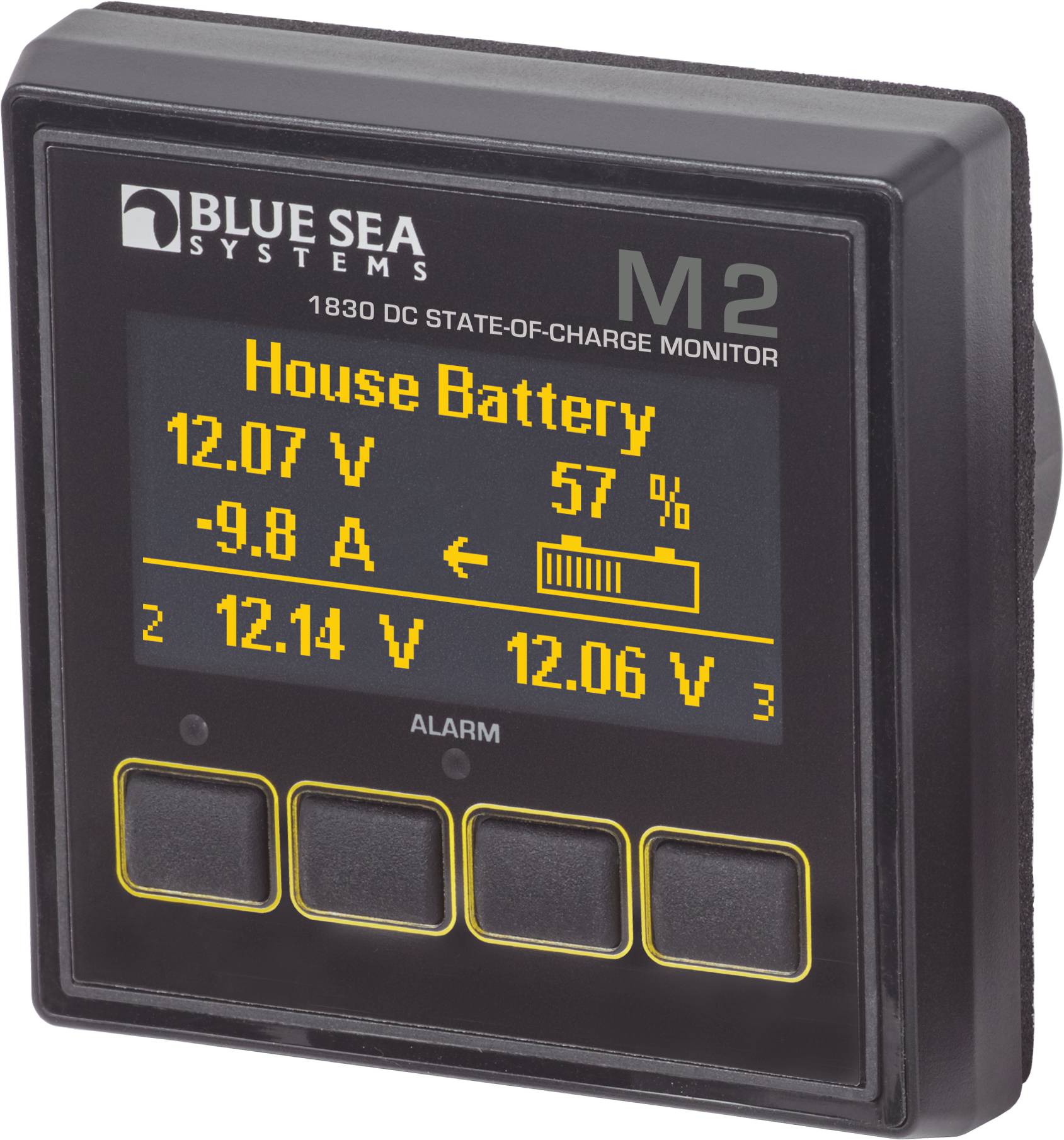

Blue Sea 1830 – M2 DC Multimeter with State of Charge (SoC), 12/24/48V
The Blue Sea 1830 M2 DC Multimeter with State of Charge (SoC) is designed to accurately measure and monitor the electrical performance of a single battery bank. By providing precise state-of-charge information, it helps users understand available battery capacity in a way similar to a fuel gauge, supporting reliable power management and preventing unexpected battery depletion.
The meter measures three voltages and one current simultaneously and supports programmable shunt ratios for flexible system integration. An external relay output allows activation of alarms or control devices based on user-defined conditions. The unit operates across a wide DC voltage range and is suitable for 12V, 24V, and 48V systems.
Key Features
- Accurate state-of-charge (SoC) monitoring for one battery bank
- Measures three voltages and one current
- Supports programmable shunt ratios
- Includes external relay activation
- Wide input voltage range for multi-voltage DC systems
Electrical Functions
- Voltage measurement: 8–70 V DC
- Current measurement: -500 A to +500 A (500 A with included shunt)
- State-of-Charge calculation for one battery bank
Technical Specifications
Nominal System Voltage 12 V DC, 24 V DC, 48 V DC Input Voltage Range 7–70 V DC Current Range -500 A to +500 A Resolution 0.01 V DC Voltage Accuracy ± 1.0% Display Size 55 mm × 28 mm Maximum Power Consumption 1.00 W Minimum Power Consumption 0.3 W Alarms High Current, High/Low Voltage, Low Battery Weight 4.00 lb (1.81 kg)
Included Components
Quantity Part Number Description 1 8255 DC Digital Current Shunt – 500A
Optional Accessories
- Panel 360 M2 Monitor Blank (PN 1525)
- ML-RBS Remote Battery Switches with Manual Control Auto-Release (12V / 24V)
- Status LEDs: Amber (PN 8033), Red (PN 8171), Green (PN 8172)
- Alarm accessories (application dependent)
Certifications
- IP66
-
