The BEP 772-DBC-B is a Pro Installer Dual Bank Control Battery Switch designed to manage two battery banks and two loads in one compact unit. It combines the functions of three battery switches into one control for simpler installation and space savings. A dedicated safety position isolates one load (House “On”, Start “Off”) in case of engine malfunction, helping maintain essential communications. Suitable for 12–48V DC systems (both banks must be the same voltage), it is rated 400A continuous, 600A intermittent, and 1500A cranking. It supports surface, rear panel, or front mounting.
- Description
- Ask a Question
-

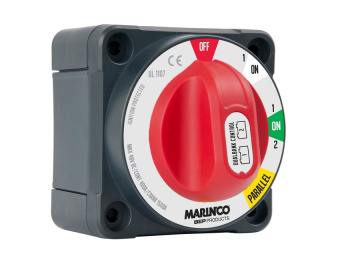

BEP 772-DBC-B - Pro Installer Dual Bank Control Battery Switch 1 / 1+2 / Parallel / Off, 48V DC, 400A
The BEP 772-DBC-B is a Pro Installer Dual Bank Control Battery Switch designed to simplify battery management by combining the functions of three battery switches into one. It provides intuitive control for two battery banks and two loads, helping reduce installation space and cost while maintaining safety.
A unique safety position isolates one load (e.g. House “On”, Start “Off”) in the event of engine malfunction, so essential systems such as communications can remain powered.
Key Features
- Switch type: Dual Bank Control Battery Switch
- Battery banks: 2
- Loads managed: 2
- Operating voltage: 48V DC (for 12–48V systems)
- Important note: Both battery banks must be the same voltage
- Mounting options: Surface, rear panel, or front
Electrical Ratings
- Continuous rating: 400A
- Intermittent rating: 600A
- Cranking rating: 1500A
Operation
- Switch positions: 1, 1+2, Parallel, Off
Dimensions & Connections
- Dimensions (inches): 3.85" × 3.85" × 3.62"
- Dimensions (mm): 98 × 98 × 92 mm
- Stud size: 4 × 10 mm (3/8")
Part Number
- BEP Part #: 772-DBC-B
-
