ID
823886
$ 120.03
1-2 weeks delivery time
-
+

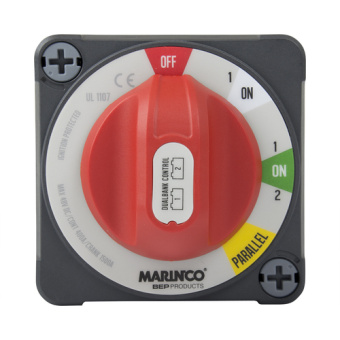

The BEP 772-DBC-EZ is a Pro Installer EZ-Mount dual bank control battery switch for 12–48V DC systems (both battery banks must be the same voltage). It combines the functions of three battery switches in one to manage 2 battery banks and 2 loads, and includes switch positions 1 / 1+2 / 2 / Parallel / Off plus a safety mode to isolate one load if needed. Rated 400A continuous, 600A intermittent, and 1500A cranking, it uses 4 × 10 mm (3/8") connection studs and has compact dimensions of 3.85" × 3.85" × 3.62" (98 × 98 × 92 mm) for space-critical marine installations.
- Description
- Ask a Question
-
BEP 772-DBC-EZ – Pro Installer Dual Bank Control Battery Switch, 400A, EZ-Mount, 12–48V DC, MC10
The BEP 772-DBC-EZ is a professional-grade dual bank control battery switch designed to combine the functions of multiple switches into one compact unit. It is engineered to intuitively manage 2 battery banks and 2 loads, helping reduce installation complexity and save panel space.
Key Features
- Dual bank control: manages 2 battery banks and 2 loads
- 3-in-1 switch function: combines the functions of 3 battery switches into one
- EZ-Mount version: designed for surface-only mounting
- Safety position: isolates one load in case of engine malfunction so an emergency call can still be made
- Space and installation savings: reduces both footprint and installation cost without compromising safety
Switch Positions
- 1
- 1+2
- 2
- Parallel
- Off
Technical Specifications
System Voltage 48V DC (for 12–48V systems, both banks must be same voltage) Continuous Rating 400A Intermittent Rating 600A Cranking Rating 1500A Dimensions (W × H × D) 3.85" × 3.85" × 3.62" (98 × 98 × 92 mm) Stud Size 4 × 10 mm (3/8")
Model / Mounting Notes
Model Mounting 772-DBC-EZ Surface ONLY -
