ID
823885
$ 145.87
1-2 weeks delivery time
-
+
The BEP 772-DBC is a Pro Installer Dual Bank Control Battery Switch that combines the functions of three battery switches into one unit to manage two battery banks and two loads. It includes a dedicated safety position that isolates one load (House “On”, Start “Off”) in case of engine malfunction, helping maintain critical communications. Designed for 12–48V DC systems (both banks must be the same voltage), it is rated 400A continuous, 600A intermittent, and 1500A cranking. Mounting options include surface, rear panel, or front.
- Description
- Ask a Question
-

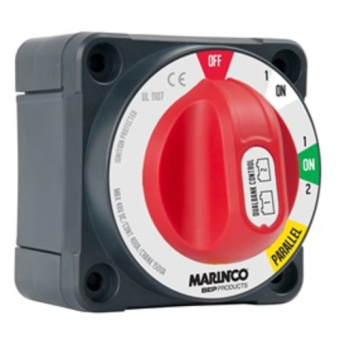

BEP 772-DBC - Pro Installer 400A Dual Bank Control Battery Switch, 48V DC
The BEP 772-DBC is a Dual Bank Control Battery Switch designed to simplify battery management on board. These innovative (patented) switches combine the functions of three battery switches in one unit to intuitively manage 2 battery banks and 2 loads, helping reduce installation space and wiring complexity without compromising safety.
A unique safety position isolates one load (e.g. House “On”, Start “Off”) in case of engine malfunction, so a radio/emergency communication load can still be powered.
Key Features
- Switch type: Dual Bank Control Battery Switch
- Battery banks: 2
- Loads managed: 2
- Safety position: House “On”, Start “Off” (load isolation mode)
- Mounting options: Surface, rear panel, or front
- System voltage: 48V DC (for 12–48V systems, both banks must be same voltage)
Electrical Ratings
- Continuous rating: 400A
- Intermittent rating: 600A
- Cranking rating: 1500A
Operation
- Switch positions: 1, 1/2, Parallel, Off
Connections & Dimensions
- Stud size: 4 × 10 mm (3/8")
- Dimensions (inches): 3.85" × 3.85" × 3.62"
- Dimensions (mm): 98 × 98 × 92 mm
Part Number
- BEP Part #: 772-DBC
-
