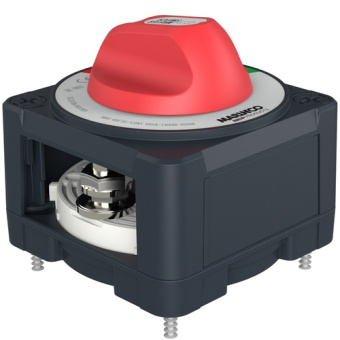

The BEP 770-EZ is a Pro Installer series EZ-Mount On/Off battery switch for 48V DC (12–48V systems), designed to isolate a single positive supply as a main house or start battery switch. It is rated at 400A continuous, 600A intermittent, and 1500A cranking, uses 2 × 10 mm (3/8") studs, and installs as EZ-Mount surface only in a compact 98 × 98 × 92 mm housing.
- Description
- Ask a Question
-
BEP 770-EZ – Pro Installer EZ-Mount On/Off Battery Switch 48V DC (12–48V Systems), 400A Continuous, 600A Intermittent, 1500A Cranking
The BEP 770-EZ is a Pro Installer series On/Off battery switch designed for isolating a single positive supply, such as a main house or start battery switch. It uses an EZ-Mount format for simplified surface installation and provides high-current switching for demanding marine and vehicle electrical systems.
Key Features
- Pro Installer series high-current battery isolation switch
- On/Off operation for safe battery disconnect and system isolation
- EZ-Mount format for simplified installation
- Designed for 48V DC electrical systems (for 12–48V systems)
Mounting
- EZ-Mount: Surface mount only
Technical Specifications
Part Number 770-EZ Voltage 48V DC (for 12–48V systems) Rating 400A Continuous / 600A Intermittent / 1500A Cranking Operation On/Off Studs 2 x 10 mm (3/8") Dimensions (L x W x H) 3.85" x 3.85" x 3.62" (98 x 98 x 92 mm)
Installation Note
To meet the switch rating, a cable size of 120mm² or 4/0 may be required.
-
