ID
823876
$ 145.01
1-2 weeks delivery time
-
+
The BEP 770-DP is a Pro Installer series double pole On/Off battery switch designed to isolate positive and negative supplies at the same time in 48V DC (12–48V systems) installations. It is rated at 400A continuous, 600A intermittent, and 1500A cranking, uses 4 × 10 mm (3/8") studs, and comes in a compact 98 × 98 × 92 mm format with flexible mounting options including surface, rear, or front panel installation.
- Description
- Ask a Question
-

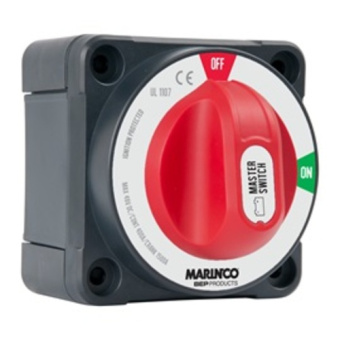

BEP 770-DP – Pro Installer Double Pole On/Off Battery Switch 48V DC (12–48V Systems), 400A Continuous, 600A Intermittent, 1500A Cranking
The BEP 770-DP is a Pro Installer series double pole On/Off battery switch designed for applications where both the positive and negative supplies must be isolated at the same time. It is built for high current capacity installations and offers a compact, professional mounting footprint.
Key Features
- Pro Installer series high-current battery isolation switch
- Double pole configuration for simultaneous isolation of positive and negative supplies
- On/Off switching operation
- Designed for 48V DC electrical systems (for 12–48V systems)
- Compact format for professional installations
Mounting Options
- Surface mount
- Rear panel mount
- Front panel mount
Technical Specifications
Part Number 770-DP Voltage 48V DC (for 12–48V systems) Rating 400A Continuous / 600A Intermittent / 1500A Cranking Operation On/Off Studs 4 x 10 mm (3/8") Dimensions (L x W x H) 3.85" x 3.85" x 3.62" (98 x 98 x 92 mm)
Safety Note
For safety reasons, these switches are not recommended for switching house and start battery systems at the same time. For that application, please use the Dual Bank Control Switch (772-DBC or 772-DBC-EZ) or one of the battery switch clusters.
-
