The BEP 770-DP-EZ is a Pro Installer series EZ-Mount double pole On/Off battery switch for 48V DC (12–48V systems), designed for installations where positive and negative supplies must be isolated simultaneously. It is rated at 400A continuous, 600A intermittent, and 1500A cranking, uses 4 × 10 mm (3/8") studs, and features EZ-Mount surface-only installation in a compact 98 × 98 × 92 mm format.
- Description
- Ask a Question
-

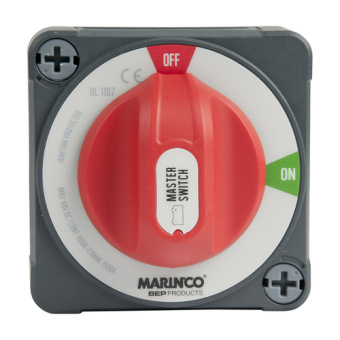

BEP 770-DP-EZ – Pro Installer EZ-Mount Double Pole On/Off Battery Switch 48V DC (12–48V Systems), 400A Continuous, 600A Intermittent, 1500A Cranking
The BEP 770-DP-EZ is a Pro Installer series double pole On/Off battery switch with an EZ-Mount format designed for applications where both positive and negative supplies must be isolated at the same time. It is built for high-current installations and uses an industry-standard mounting footprint for professional wiring.
Key Features
- Pro Installer series high-current battery isolation switch
- Double pole configuration for isolating positive and negative supplies simultaneously
- On/Off switching operation
- EZ-Mount format for simplified installation
- Designed for 48V DC electrical systems (for 12–48V systems)
Mounting
- EZ-Mount: Surface mount only
Technical Specifications
Part Number 770-DP-EZ Voltage 48V DC (for 12–48V systems) Rating 400A Continuous / 600A Intermittent / 1500A Cranking Operation On/Off Studs 4 x 10 mm (3/8") Dimensions (L x W x H) 3.85" x 3.85" x 3.62" (98 x 98 x 92 mm)
Safety Note
For safety reasons, these switches are not recommended for switching house and start battery systems at the same time. For that application, please use the Dual Bank Control Switch (772-DBC or 772-DBC-EZ) or one of the battery switch clusters.
-
