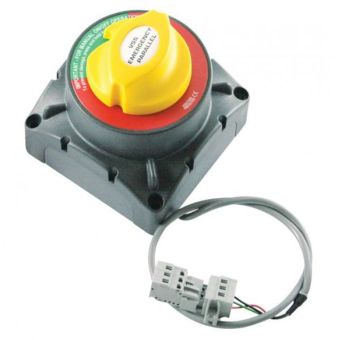

BEP 720MDVSO-KEY-B - Dual Operation VSS Switch HD Optic

BEP 720MDVSO-KEY-B - Dual Operation VSS Switch HD Optic

Key Features:

• Advanced Voltage Sensitive Switch (VSS) that automatically manages charging and isolation for dual battery banks, ensuring efficient power distribution.
• High-capacity dual operation switch rated at 500A for continuous current, suitable for demanding high-current applications in marine and industrial environments.
• Compatible with both 12V and 24V systems (both battery banks must match voltage), making it versatile across various setups.
• Remote emergency parallel connection option allows a high-current link between battery banks for up to 10 minutes, activated via a dash-mounted momentary button for quick access.
• Features dual battery sensing with automatic engagement based on battery voltage; lowered cut-in voltage (13.3V/26.6V) accommodates low-output alternators and high-temperature applications.
• Manual override provides direct user control in critical situations, ensuring reliability and flexibility in power management.
• Rugged construction with marine-grade materials, including tinned copper conductors, stainless steel nuts, and fiber-reinforced plastics, ensuring long-term resistance to corrosion, vibration, and extreme temperatures.

Specifications:

• Part Number: 720MDVSO-KEY-B
• Operating Voltage: 12V and 24V DC compatibility
• Current Rating:
  • Continuous: 500A
  • Intermittent: 700A (5 minutes)
  • Cranking: 2500A (10 seconds)
• Dimensions: 4" x 4" x 4.3" (L x W x H)
• Power Consumption: Low current draw (<6mA) to minimize battery drain
• Cut-In Voltage: 13.3V / 26.6V
• Cut-Out Voltage: 12.8V / 25.6V
• Construction: Tinned copper conductors, stainless steel nuts, high-temperature fiber-reinforced plastics for durability and resistance to harsh environments
• Ingress Protection: IP67-rated, fully waterproof and dustproof for reliable performance in marine conditions
• Mounting Options: Can be recessed or surface mounted for flexible installation configurations
• Ignition Protection: Designed to meet ABYC standards for safe use in gasoline-powered compartments

Compatibility and Application:

• Ideal for marine, RV, and off-grid applications that require robust battery management with high-current capacity.
• Compatible with both 12V and 24V battery systems, providing flexible use across various applications.
• Designed for emergency backup scenarios, enabling secure power continuity through remote high-current parallel connection.

Benefits:

• Ensures efficient, reliable charging and isolation of dual battery banks, enhancing battery life and reducing maintenance needs.
• Remote emergency parallel function allows rapid access to backup power, providing peace of mind in critical situations.
• Heavy-duty construction with IP67 protection makes it suitable for harsh marine environments, resisting corrosion, dust, and water exposure.
• Low power consumption reduces battery load, conserving energy for extended battery life in off-grid scenarios.
• Flexible mounting options and high compatibility make it easy to integrate into diverse setups, enhancing overall system design and functionality.
