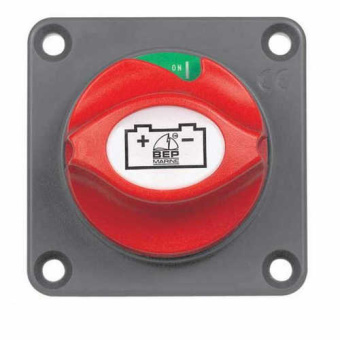

BEP 701-PM – Panel Mounted Battery Master Switch On/Off 48V, 275A Continuous (2× 10mm Studs)

ID 823824

$ 48.27

1-2 weeks delivery time

- +

Add to cart

The BEP 701-PM is a compact panel-mounted battery master switch designed for On/Off control of one battery bank in 48V DC systems. It features a standard 2-1/16" (52 mm) hole cut-out, 275A continuous rating, and heavy-duty 2× 10mm (3/8") studs for secure cable connections. Built for marine electrical installations, the switch supports recessed or surface mounting and provides full cable access inside the panel mount body for clean, unrestricted wiring.

Description
Ask a Question

BEP 701-PM – Panel Mounted Battery Master Switch On/Off 48V, 275A Continuous (2× 10mm Studs)

The BEP 701-PM is a compact and lightweight panel-mounted battery master switch designed specifically for modern marine electrical installations. It provides reliable On/Off switching for a single battery bank while offering clean integration into dashboards and electrical panels.

Key Features

Panel mount battery master switch for compact installations
On/Off operation for one battery bank
Standard 2-1/16" (52 mm) hole cut-out (same as a standard gauge hole)
Countersunk recesses for surface mount application
Inside captive inserts for 3/16" (4.8 mm) nuts
Full access for cables with no restrictions
Standard interchangeable label system

Specifications

Part Number	701-PM
OEM Number	701B-PM
Dimensions (L×W×H)	2.75" × 2.75" × 3" (69 × 69 × 67 mm)
Continuous Rating	275A
Intermittent (5 min)	455A
Cranking (10 sec)	1250A
Voltage	48V DC
Operation	On / Off
Stud Size	2 × 3/8" (10 mm)
Recommended Cable Size	3/0 AWG (95 mm²)

Applications

Battery isolation and master disconnect for 48V DC systems
Panel-mounted battery control for boats and marine electrical systems
Compact installations where a standard gauge hole cut-out is required
