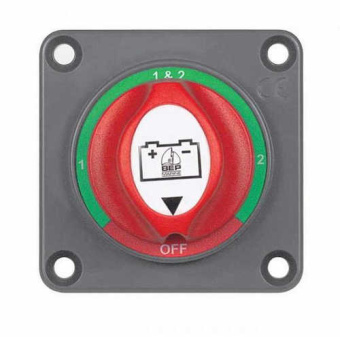

BEP 701S-PM – Panel Mount Mini Battery Selector Switch 1-2-Both-Off, 48V DC, 200A Continuous

ID 823826

$ 98.51

1-2 weeks delivery time

- +

Add to cart

The BEP Marine 701S-PM is a compact panel-mounted mini battery selector switch with 1-2-Both-Off operation for selecting between two battery banks or combining them in 48V DC systems. It is rated for 200A continuous current, supports standard installation using a 2-1/16" (52 mm) panel cut-out, and features 8 mm (5/16") studs for secure cable connection. This switch is built for practical battery bank selection and isolation in marine electrical setups.

Description
Ask a Question

BEP Marine 701S-PM – Panel Mount Mini Battery Selector Switch 1-2-Both-Off, 48V DC, 200A Continuous

The BEP Marine 701S-PM is a compact panel-mounted mini battery selector switch designed for selecting between two battery banks or combining them when required. With 1-2-Both-Off functionality, it provides a simple manual solution for battery bank control and isolation in marine electrical systems.

Key Features
- Panel mount mini battery selector switch with 1-2-Both-Off positions
- Designed for 48V DC electrical systems
- 200A continuous current rating
- Standard 2-1/16" (52 mm) panel cut-out (same as a standard gauge hole)
- 8 mm (5/16") studs for cable connections
- Compact design for clean and efficient panel installation
Specifications

Part Number 701S-PM

Voltage 48V DC

Continuous Current 200A

Operation 1-2-Both-Off

Mounting Type Panel Mount

Stud Size 3 x 5/16" (8 mm)

Applications
- Battery bank selection for marine electrical systems
- Manual battery isolation and distribution control
- Panel installations requiring a compact selector switch solution
