ID
823757
$ 21.95
1-2 weeks delivery time
-
+
The BEP 1002004 is an SPDT chrome plated toggle switch with (On)/Off/(On) momentary action, designed for 12V and 24V DC systems. It is rated at 25A at 12V DC and 15A at 24V DC and uses #6-32 screw terminals for secure electrical connections. This switch is suitable for applications requiring momentary control of two circuits in marine and industrial electrical installations.
- Description
- Ask a Question
-

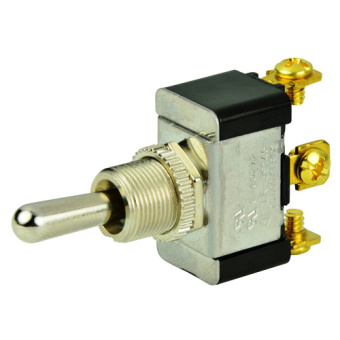

BEP 1002004 – SPDT Chrome Plated Toggle Switch (On)/Off/(On), 12/24V DC
The BEP 1002004 is an SPDT (Single Pole Double Throw) toggle switch designed for use in 12V and 24V DC electrical systems. It features a chrome plated toggle lever and a (On)/Off/(On) momentary switching configuration.
Key Features
- SPDT toggle switch configuration
- (On) / Off / (On) momentary action
- Designed for 12V and 24V DC systems
- Chrome plated toggle lever
- Manual mechanical operation
Electrical Specifications
Parameter Specification Switch Type SPDT (Single Pole Double Throw) Switch Action (On) / Off / (On) momentary Nominal Voltage 12V / 24V DC Current Rating 25A at 12V DC, 15A at 24V DC
Connection Details
- Terminal type: #6-32 screw terminals
Typical Applications
The BEP 1002004 is suitable for marine and industrial control panels, auxiliary circuit control, and applications requiring momentary switching between two electrical functions.
-
