The BEP 1001801 is an SPST Contura switch with Off–On operation for 12/24 V DC systems. Rated at 20 A at 12 V DC and 15 A at 24 V DC, it features a single amber LED, IP66 protection, and 1/4" blade terminals for marine control panels.
- Description
- Ask a Question
-

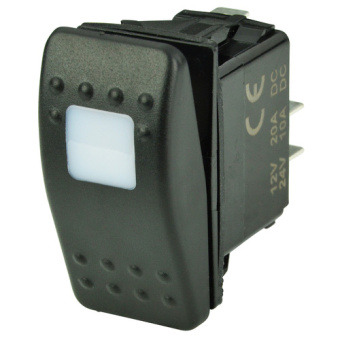

BEP 1001801 – SPST Contura Switch, Off-On, Amber LED, 12/24V DC
The BEP 1001801 is a single pole, single throw (SPST) Contura switch designed for reliable control of individual electrical circuits in marine and industrial environments. Its Off–On action provides straightforward switching for essential onboard systems.
The switch is rated to IP66 and is resistant to high-pressure wash, making it suitable for installation in waterproof electrical panels while maintaining panel integrity. Contura switches and covers are interchangeable with those used as original equipment on many boat types.
- Switch type: SPST Contura switch
- Switch action: Off / On
- Nominal voltage: 12 V / 24 V DC
- Current rating: 20 A at 12 V DC, 15 A at 24 V DC
- Termination type: 1/4" blade terminals
- LED indication: 1 × Amber LED
- Ingress protection: IP66
The BEP 1001801 features snap-in mounting suitable for panel cut-outs measuring 1.45" × 0.83" and panel thicknesses from 0.093" to 0.187". This switch replaces Cole Hersee part number 58332-04 and is ideal for use in lighting, trim tab, horn, wiper, and power hatch circuits.
-
