ID
823707
$ 80.29
1-2 weeks delivery time
-
+
The BEP 1001506 is an SPST push button switch with Off/(On) momentary operation, designed for 6–36 V DC systems and rated at 10 A at 12 V. It features a PVC-coated body for protection against moisture and dirt and is supplied with two 8" 16 AWG wire leads for easy installation. Suitable for horn circuits and other momentary control applications in marine and automotive environments.
- Description
- Ask a Question
-

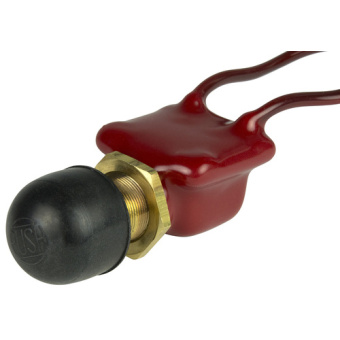

BEP 1001506 – SPST PVC Coated Push Button Switch Off/(On), Red, 6–36V DC, 10A
The BEP 1001506 is an SPST push button switch designed for momentary circuit activation. It operates in an Off/(On) configuration, meaning the circuit is energized only while the button is pressed and automatically returns to the Off position when released.
This switch features a PVC-coated body that provides additional protection against moisture and dirt, making it suitable for use in marine, automotive, and other demanding environments. It is commonly used for horn circuits and other momentary control applications.
- SPST push button switch
- Off/(On) momentary operation
- PVC-coated body for environmental protection
- Designed for horn and momentary control applications
Electrical & Installation Specifications
Switch Type SPST Operation Off / (On) – Momentary Nominal Voltage 6–36V DC Current Rating 10A at 12V DC Termination Type Wire leads, 16 AWG, 8" Button Color Red Replacement Cap 1001501 Replacement For Cole Hersee M-608 -
