ID
823690
$ 21.04
1-2 weeks delivery time
-
+
The BEP 1001102 LED Pilot Indicator Light is a solid-state 12V DC panel indicator with a blue LED, designed for clear circuit status indication. It features a chrome-plated body with bezel, washer, and hex nut, polarized quick-connect 1/4" blade terminals for simplified wiring, and a maintenance-free LED that does not require replacement. The indicator mounts into a 9/16" panel hole and is suitable for panel thicknesses from 3/16" to 9/32".
- Description
- Ask a Question
-

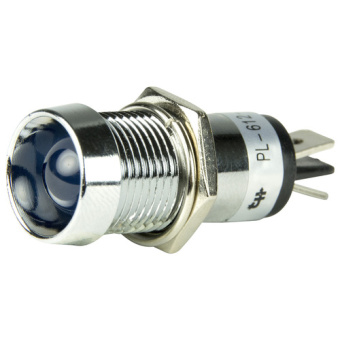

BEP 1001102 – LED Pilot Indicator Light, 12V DC, Blue
The BEP 1001102 is a 12V DC LED pilot indicator light designed for panel-mounted circuit indication. It uses solid-state LED technology that never requires replacement, supporting long-term, maintenance-free operation in electrical systems.
The indicator features a bright chrome-plated body and is supplied with a bezel, washer, and hex nut for secure mounting. Polarized quick-connect terminals simplify wiring and help ensure correct electrical connection during installation.
- LED pilot indicator light for panel installation
- Designed for 12V DC electrical systems
- Solid-state LED with no replacement required
- Blue LED color for clear visual indication
- Chrome-plated body, bezel, washer, and hex nut
- Polarized quick-connect terminals
Technical Specifications
Part Number 1001102 Nominal Voltage 12V DC LED Color Blue Termination Type 1/4" blade terminals Mounting Hole Diameter 9/16" Panel Thickness 3/16" to 9/32"
This indicator light is suitable for marine and automotive applications and is comparable to Cole Hersee part number PL-612-B-BP.
-
