ID
1317029
$ 624.48
1-2 weeks delivery time
-
+
The Nu-T-Link V-Belt Z-10 mm, supplied as a 5-meter roll, is designed for tough conditions where conventional V-belts fail. Made from high-grade polyurethane, polyester, and stainless steel, it resists chemicals, oils, wear, water, and steam, and operates reliably between -40 °C and +100 °C.
- Description
- Ask a Question
-

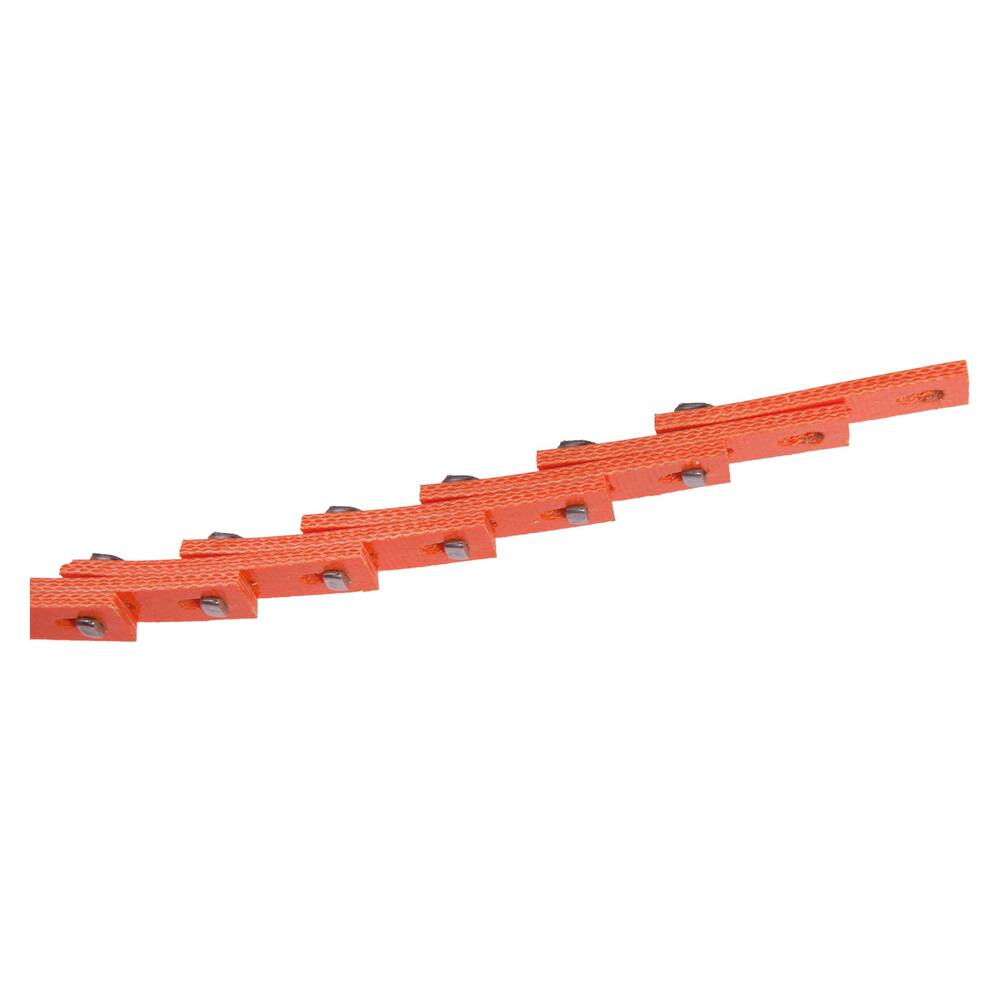

Nu-T-Link V-Belt Z-10 mm (5 Meter/Roll)
NU-T-LINK excels in situations where conventional V-belts fail. While sizes A and B typically cover 85% of V-belt applications, this model offers superior durability in harsh conditions. It withstands industrial chemicals, oils, wear, water, and steam, functioning reliably between -40 °C and +100 °C.
- Colour: orange
- Materials: high-grade polyurethane, polyester, and stainless steel
- Supplied as a 5-meter roll with one key
- Product code: 81.06.510
- Groove width: 10 mm
- Description: Few sold
- Type: Z
- Instructions:
- Pull the belt through the pulley grooves to find the correct length.
- Remove one link every 11 links for 9% pre-tensioning.
- Join the belt ends to form a continuous loop.
- Fit the belt around pulleys and rotate slowly.
-
