ID
1317032
$ 231.20
1-2 weeks delivery time
-
+
The Nu-T-Link V-Belt C-22 mm, delivered as a 5-meter roll, is perfect for tough uses where regular V-belts fall short. It offers superior durability and resistance to harsh conditions, functioning well within a broad temperature range.
- Description
- Ask a Question
-

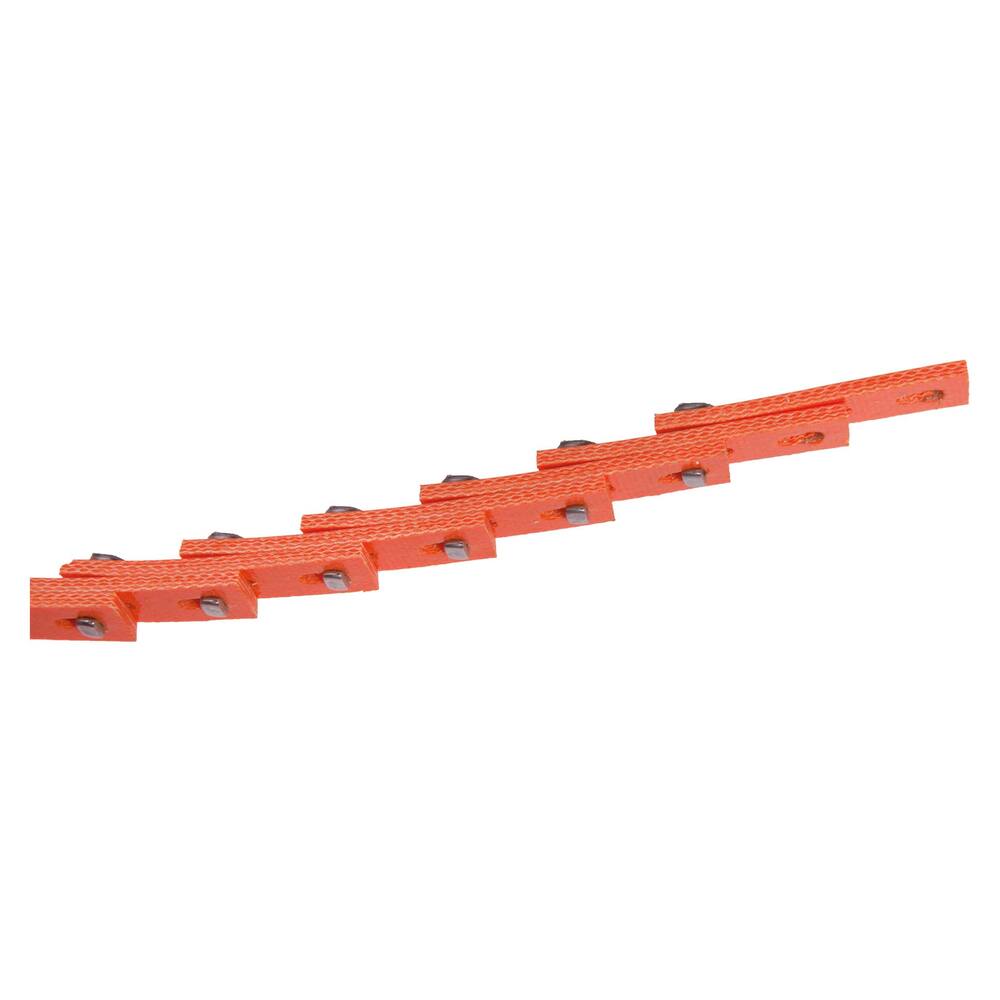

Nu-T-Link V-Belt C-22 mm (1 Meter/Roll)
Perfect for tough applications where regular V-belts struggle. While sizes A and B cover most needs, this size provides a longer lifetime under harsh conditions. Resistant to industrial chemicals, oils, wear, water, and steam, it works reliably from -40 °C to +100 °C.
- Colour: orange
- Materials: high-grade polyurethane, polyester, and stainless steel
- Delivered as a 5-meter roll with one key
- Product code: 81.06.522
- Groove width: 22 mm
- Description: Few sold
- Type: C
- Instructions:
- Thread the belt through the pulley grooves to determine length.
- Remove one link every 11 links to achieve 9% pre-tensioning.
- Join the ends to make the belt continuous.
- Place the belt on pulleys and rotate slowly.
-
