ID
1317031
$ 748.97
1-2 weeks delivery time
-
+
The Nu-T-Link V-Belt B-17 mm is designed for challenging applications, providing long service life and resistance to industrial chemicals, oils, wear, water, and steam. Supplied as a 5-meter roll, it performs reliably from -40 °C to +100 °C.
- Description
- Ask a Question
-

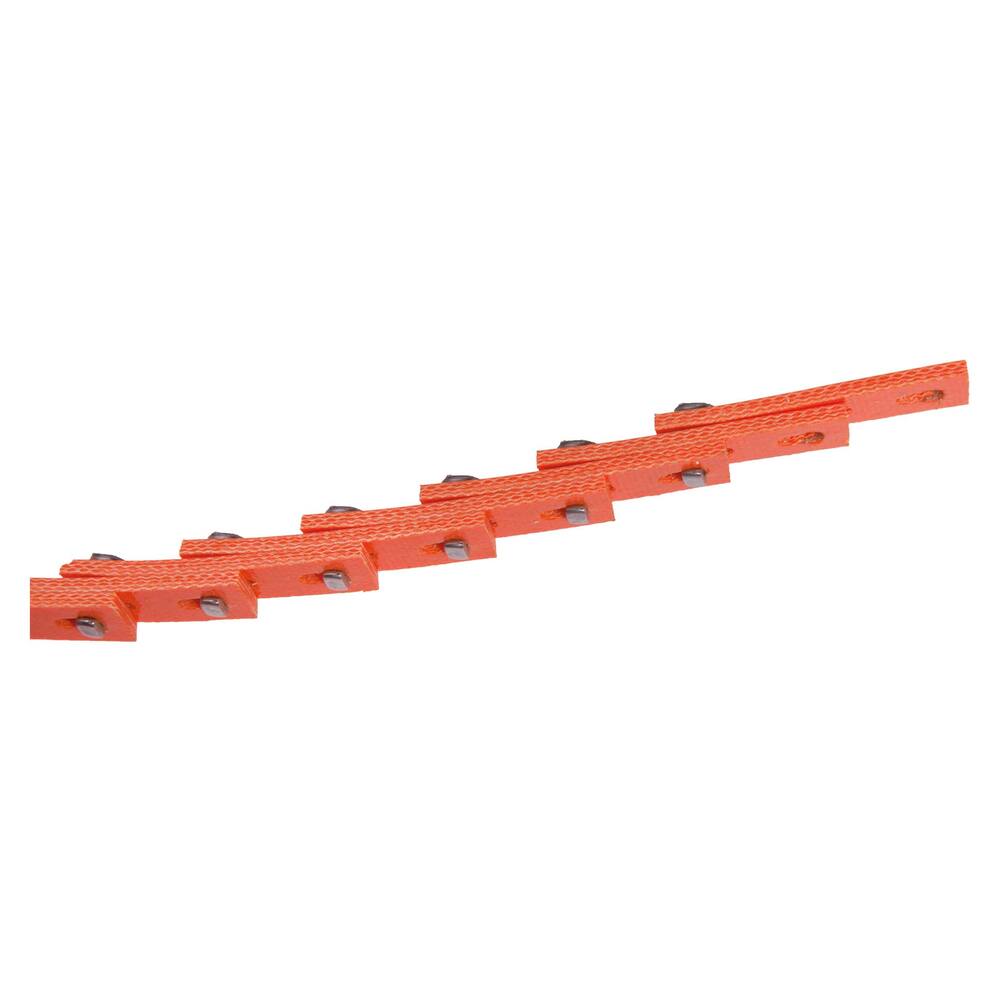

Nu-T-Link V-Belt B-17 mm (5 Meter/Roll)
Designed for challenging conditions where standard V-belts do not suffice. Sizes A and B generally fulfill 85% of demands. This belt offers extended service life in harsh environments, resisting chemicals, oils, wear, water, and steam within a temperature range of -40 °C to +100 °C.
- Colour: orange
- Materials: high-grade polyurethane, polyester, and stainless steel
- Supplied as a 5-meter roll with one key
- Product code: 81.06.517
- Groove width: 17 mm
- Description: Many sold
- Type: B
- Instructions:
- Pass the belt through pulley grooves to find correct length.
- Remove one link every 11 links for 9% pre-tensioning.
- Connect ends to form a continuous belt.
- Fit the belt around pulleys and rotate slowly.
-
