ID
1404172
$ 2.79
1-2 weeks delivery time
Diameter, mm:
- 1.5
- 2
- 3
Length, mm:
- 25
- 35
- 40
Item:
- 5 pcs
- 10 pcs
- 30 pcs
TREM stainless steel split pins are designed for securing compatible mechanical fasteners and preventing components from moving out of position. Each pin features a looped head and two split legs that can be bent apart after insertion through a suitable hole. Their stainless steel construction provides corrosion resistance for marine fittings, equipment assemblies and general fastening applications. Available in three sizes: Ø1.5x25 mm, Ø2x35 mm and Ø3x40 mm, supplied in boxes of 30, 10 and 5 pieces respectively.
- Description
- Ask a Question
-
TREM Stainless Steel Split Pins (Cotter Pins)
TREM split pins are manufactured from stainless steel and designed to secure compatible bolts, pins, nuts and other mechanical components. They help retain fasteners in position and reduce the risk of accidental disengagement.

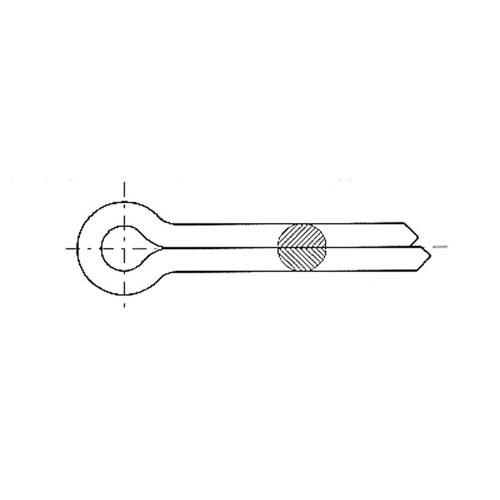

Each split pin features a looped head and two straight legs. The pin is inserted through a suitable hole, and its legs are bent apart to keep it in place.
The stainless steel construction offers corrosion resistance for marine fittings, equipment assemblies and general mechanical applications.
The range includes three diameters: 1.5, 2 and 3 mm, with lengths of 25, 35 and 40 mm. Packaging quantities depend on the selected size.
Technical Specifications
Brand TREM Product Type Split Pin / Cotter Pin Material Stainless Steel Design Looped Head with Two Split Legs Available Diameters 1.5, 2, 3 mm Available Lengths 25, 35, 40 mm Pack Quantities 5, 10, 30 pcs Number of Variants 3
Features and Applications
- Manufactured from corrosion-resistant stainless steel.
- Looped head with two legs for retaining mechanical fasteners.
- Designed for installation through a suitable cross-hole.
- Helps secure compatible pins, bolts and other mechanical components.
- Suitable for marine fittings, equipment assemblies and general mechanical applications.
- Available in three diameter and length combinations.
- Supplied in boxes containing 5, 10 or 30 pieces.
Available Sizes and Part Numbers
TREM Part No. Diameter Length Quantity EAN E5415025 1.5 mm 25 mm 30 pcs 8024827014783 E5402035 2 mm 35 mm 10 pcs 8024827014769 E5403040 3 mm 40 mm 5 pcs 8024827014776
Size Selection and Installation
Select the split pin diameter and length according to the retaining hole and the dimensions of the component being secured.
Insert the pin through the appropriate hole and bend its two legs apart to retain it. Replace the pin after removal if the legs have been deformed during installation.
The exact stainless steel grade and DIN/ISO standard are not specified in the supplied catalogue.
-
