ID
1404176
$ 3.26
1-2 weeks delivery time
Diameter, mm:
- 3
- 3.8
- 4.8
Length, mm:
- 16
- 20
Item:
- 15 pcs
- 20 pcs
TREM aluminium alloy blind rivets are designed for permanent fastening of compatible metal sheets, panels and fittings. They feature a rivet body with a flat head and a pulling mandrel, allowing installation from one side of the workpiece using a suitable blind riveting tool. The aluminium alloy construction provides a lightweight fastening solution for marine hardware and general assembly applications. Available in diameters of 3, 3.8 and 4.8 mm, with lengths of 16 or 20 mm. Supplied in boxes containing 15 or 20 rivets, depending on the selected size.
- Description
- Ask a Question
-

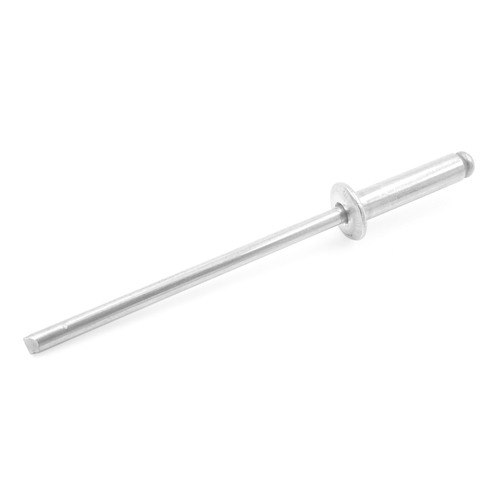

TREM Aluminium Alloy Blind Rivets
TREM aluminium alloy blind rivets are designed for permanently fastening compatible metal sheets, panels and fittings. Their lightweight construction makes them suitable for general hardware assembly and marine equipment installations.
Each rivet features an aluminium alloy body with a flat head and a pulling mandrel. The rivet can be installed from one side of the workpiece using a suitable blind riveting tool.
During installation, the tool pulls the mandrel to expand the rivet body and secure the joined materials. The resulting connection provides permanent mechanical fastening without requiring access to the opposite side of the assembly.
The range includes three nominal diameters: 3, 3.8 and 4.8 mm. Available lengths are 16 and 20 mm, depending on the selected diameter. Each version is supplied in a box containing 15 or 20 rivets.
Technical Specifications
Brand TREM Product Type Blind Rivet Body Material Aluminium Alloy Head Type Flat Head Design Blind Rivet with Pulling Mandrel Available Diameters 3, 3.8, 4.8 mm Available Lengths 16, 20 mm Installation Blind Riveting Tool Pack Quantities 15, 20 pcs Number of Variants 4
Features and Applications
- Aluminium alloy rivet body for lightweight fastening.
- Flat head with a pulling mandrel.
- Designed for permanent mechanical connections.
- Can be installed with access to only one side of the workpiece.
- Suitable for compatible metal sheets, panels and fittings.
- Useful for marine hardware and general metal assembly applications.
- Available in diameters of 3, 3.8 and 4.8 mm.
- Lengths of 16 and 20 mm.
- Supplied in boxes containing 15 or 20 pieces.
Available Sizes and Part Numbers
TREM Part No. Diameter Length Quantity EAN E5528018 3 mm 16 mm 20 pcs 8024827014820 E5538016 3.8 mm 16 mm 20 pcs 8024827014844 E5548014 4.8 mm 16 mm 15 pcs 8024827014868 E5548020 4.8 mm 20 mm 15 pcs 8024827235843
Size Selection and Installation
Select the required rivet diameter and length according to the mounting hole and combined thickness of the materials being joined. Install using a compatible blind riveting tool.
The exact aluminium alloy grade, mandrel material, grip range, recommended hole diameter and DIN/ISO standard are not specified in the supplied catalogue.
-
