ID
1396270
$ 49.49
1-2 weeks delivery time
Type:
- Terminal
- Central
The Osculati handrail support with hidden screws is made from polished anodized aluminium and designed for 40×20 mm tubing. Two versions are available: article 41.608.00 as a terminal fitting and article 41.609.00 as a central support. Both versions have a Ø50 mm base, 60 mm height, use 8 mm studs, and are compatible with optional tube 41.610.00 and optional studs and bolts 40.142.08.
- Description
- Ask a Question
-

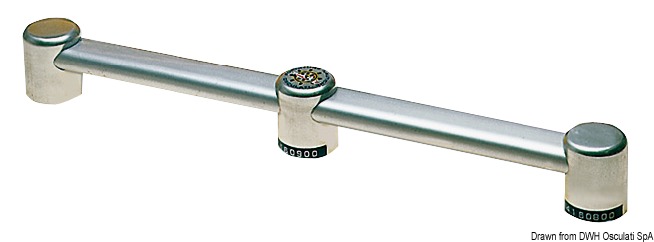

Osculati Anodized Aluminium Handrail Support with Hidden Screws – Terminal / Central, 40×20 mm Tube
The Osculati handrail support range is made from polished anodized aluminium and is designed for 40×20 mm handrail tubing. The fittings feature a hidden-screw design and are available in terminal and central configurations.
Both versions have a Ø50 mm base diameter and a height of 60 mm. Optional tube 41.610.00 and optional studs and bolts 40.142.08 are specified for the system. Stud size is 8 mm.
Key Features
- Made from polished anodized aluminium
- Hidden-screw handrail fitting design
- Available in terminal and central versions
- Designed for 40×20 mm pipe
- Base diameter: Ø50 mm
- Height: 60 mm
- Optional tube: 41.610.00
- Optional studs and bolts: 40.142.08
- Stud size: 8 mm
Available Versions
Code Version Base Ø Height For Pipe Optional Tube Optional Studs and Bolts Stud Size 41.608.00 Terminal Ø50 mm 60 mm 40×20 mm 41.610.00 40.142.08 8 mm 41.609.00 Central Ø50 mm 60 mm 40×20 mm 41.610.00 40.142.08 8 mm
Technical Specifications
Material Aluminium Finish Polished anodized Versions Terminal / Central Pipe Size 40×20 mm Base Diameter Ø50 mm Height 60 mm Stud Size 8 mm -
