ID
1396249
$ 18.30
1-2 weeks delivery time
Type:
- Terminal
- Central
Diameter, mm:
- 22
- 25
The Osculati rounded handrail fitting is made from mirror-polished stainless steel and is available in terminal and central versions for Ø22 mm and Ø25 mm handrail tubes. All four variants have a Ø35 mm base, 57 mm height and use 8 mm studs. Optional stud bolts and nuts are available under Osculati code 40.142.08.
- Description
- Ask a Question
-

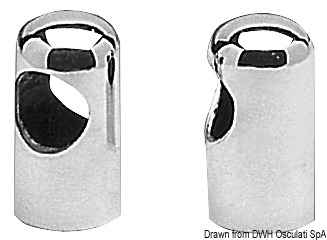

Osculati Rounded Stainless Steel Handrail Fitting – Terminal / Central, Ø22/25 mm
The Osculati rounded handrail fitting is made from mirror-polished stainless steel and is designed for Ø22 mm and Ø25 mm handrail tubing. The range includes terminal fittings for handrail ends and central fittings for intermediate support.
All versions have the same Ø35 mm base diameter and 57 mm height. The fittings use 8 mm studs, with optional stud bolts and nuts available under Osculati code 40.142.08.
Key Features
- Made from mirror-polished stainless steel
- Rounded design made from a tube
- Available in terminal and central versions
- Suitable for Ø22 mm and Ø25 mm handrail tubes
- Base diameter: Ø35 mm
- Height: 57 mm
- Stud size: 8 mm
- Optional stud bolts and nuts: 40.142.08
Available Versions
Code Version Base Diameter Height For Pipe Ø Optional Stud Bolts and Nuts Stud Size 41.151.22 Terminal Ø35 mm 57 mm Ø22 mm 40.142.08 8 mm 41.151.25 Terminal Ø35 mm 57 mm Ø25 mm 40.142.08 8 mm 41.152.22 Central Ø35 mm 57 mm Ø22 mm 40.142.08 8 mm 41.152.25 Central Ø35 mm 57 mm Ø25 mm 40.142.08 8 mm
Technical Specifications
Material Stainless steel Finish Mirror-polished Versions Terminal / Central Base Diameter Ø35 mm Height 57 mm Pipe Diameter Options Ø22 mm / Ø25 mm Stud Size 8 mm Optional Stud Bolts and Nuts 40.142.08 -
