ID
1396141
$ 23
1-2 weeks delivery time
Diameter, mm:
- 22
- 25
Item:
- 60°
- 90°

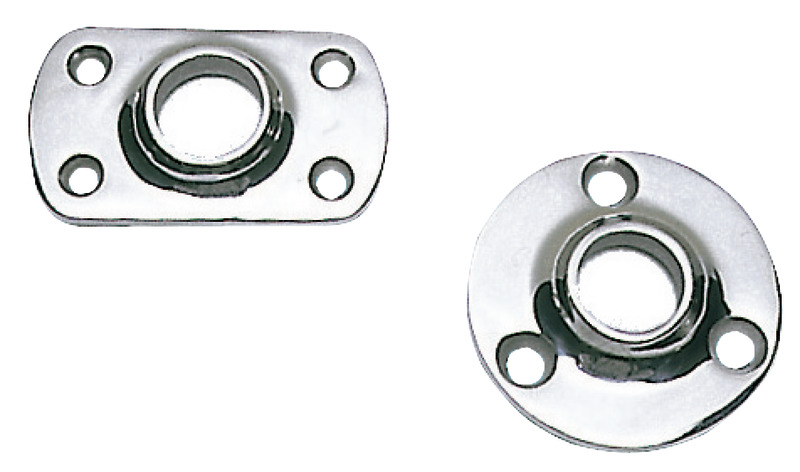

The Osculati round weld-on pulpit socket is precision-cast from mirror-polished AISI 316 stainless steel and designed to be welded into pulpit rail systems. Four versions are available for Ø22 mm and Ø25 mm tubing with either 90° or 60° slopes. Base diameters range from Ø68 mm to Ø78.5 mm depending on the model, with dedicated versions for each pipe diameter and installation angle.
- Description
- Ask a Question
-

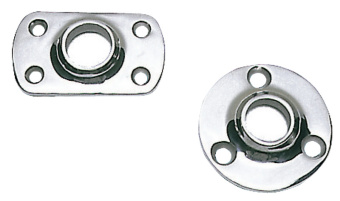

Osculati AISI 316 Round Weld-On Pulpit Socket – Ø22/25 mm, 90°/60°
The Osculati round pulpit socket is manufactured from precision-cast, mirror-polished AISI 316 stainless steel and is designed for welded pulpit rail installations. The precision-cast construction provides a sturdy component with a fine finished design.
The range includes versions for Ø22 mm and Ø25 mm pipe with either a 90° or 60° slope. The round base diameter varies according to the selected pipe diameter and angle.
Key Features
- Precision-cast AISI 316 stainless steel construction
- Mirror-polished finish
- Designed for welded installation
- Round base design
- Available for Ø22 mm and Ø25 mm pipe
- Available with 90° and 60° slopes
Available Versions
Code Version Base Diameter Slope For Pipe Ø 41.254.22 Round Ø69 mm 90° Ø22 mm 41.255.25 Round Ø78.5 mm 90° Ø25 mm 41.253.22 Round Ø68 mm 60° Ø22 mm 41.252.25 Round Ø78.5 mm 60° Ø25 mm
Technical Specifications
Material AISI 316 stainless steel Construction Precision-cast Finish Mirror-polished Installation Weld-on Base Type Round Pipe Diameter Options Ø22 mm / Ø25 mm Available Slopes 90° / 60° -
