The Osculati sloped tapered pulpit base is made from precision-cast, mirror-polished AISI 316 stainless steel and features a 60° inclination. Two versions are available: article 41.210.25 for Ø25 mm pipe with a 53 × 46 mm base and 70 mm height, and article 41.110.30 for Ø30 mm pipe with a 66 × 51 mm base and 80 mm height. Both versions use an 8 mm mounting stud; optional stud and nut set 40.142.08 is specified for both models.
- Description
- Ask a Question
-

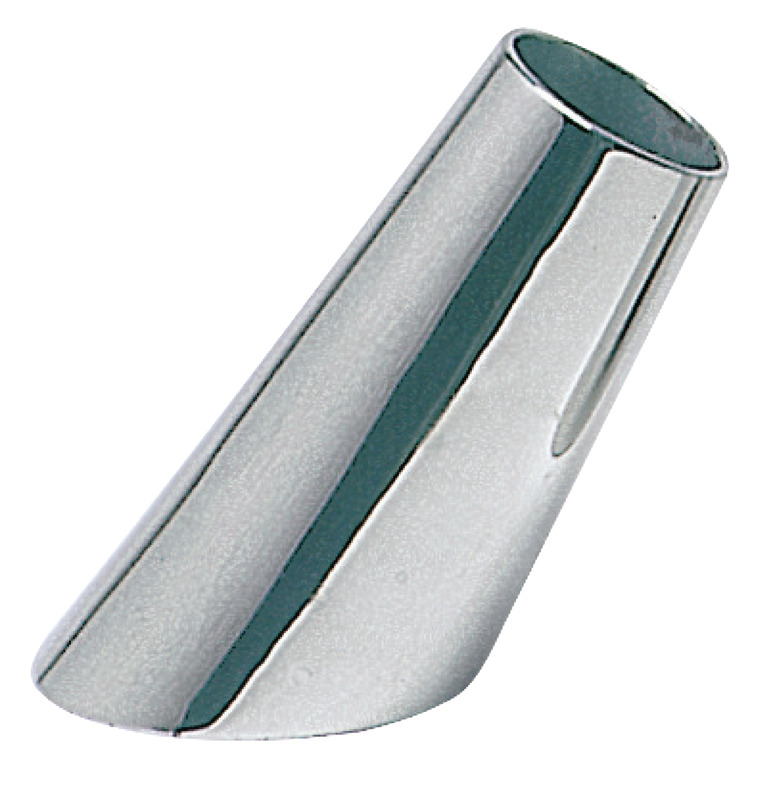

Osculati AISI 316 Sloped Tapered Pulpit Base – Ø25/30 mm, 60°
The Osculati sloped tapered pulpit base is manufactured from precision-cast AISI 316 stainless steel with a mirror-polished finish. It is designed for inclined pulpit rail installations with a 60° slope.
The range includes versions for Ø25 mm and Ø30 mm pipe. The Ø25 mm model has a 53 × 46 mm base and a height of 70 mm, while the Ø30 mm model has a 66 × 51 mm base and a height of 80 mm. Both versions use an 8 mm mounting stud.
Key Features
- Precision-cast AISI 316 stainless steel construction
- Mirror-polished finish
- Sloped tapered design
- Slope: 60°
- Available for Ø25 mm and Ø30 mm pipe
- 8 mm mounting stud
- Optional studs and nuts: 40.142.08
Available Versions
Code Version Base Size Height Slope For Pipe Ø Optional Studs and Nuts Stud Size 41.210.25 Sloped 53 × 46 mm 70 mm 60° Ø25 mm 40.142.08 8 mm 41.110.30 Sloped 66 × 51 mm 80 mm 60° Ø30 mm 40.142.08 8 mm
Technical Specifications
Material AISI 316 stainless steel Construction Precision-cast Finish Mirror-polished Version Sloped tapered base Slope 60° Pipe Diameter Options Ø25 mm / Ø30 mm Stud Size 8 mm -
