Osculati AISI 316 Sloped Tapered Pulpit Base Ø25/30 mm, 45°/60°

ID 1396167

$ 59.78

1-2 weeks delivery time

Diameter, mm:

Item:

60°
45°
45° Aerodinamic

The Osculati tapered pulpit base is manufactured from mirror-polished AISI 316 stainless steel and supplied with one 8 mm mounting stud. The range includes 45° and 60° sloped versions for Ø25 mm and Ø30 mm pipes, with base dimensions and heights varying by model. Article 41.409.31 is a dedicated aerodynamic 45° version for Ø30 mm pipe with an 84 × 48 mm base. Optional studs and bolts 40.142.08 are specified for all versions.

Description
Ask a Question

Osculati AISI 316 Sloped Tapered Pulpit Base – Ø25/30 mm, 45°/60°

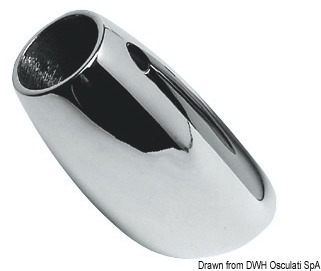

The Osculati tapered pulpit base is manufactured from mirror-polished AISI 316 stainless steel and is designed for sloped pulpit rail installations. Each base is supplied with one 8 mm mounting stud.

The range includes 45° and 60° versions for Ø25 mm and Ø30 mm pipes. Base dimensions and overall height vary according to the selected model. Article 41.409.31 is an aerodynamic 45° version for Ø30 mm pipe.

Key Features

Made from mirror-polished AISI 316 stainless steel
Tapered pulpit base design
Available for Ø25 mm and Ø30 mm pipe
Available with 45° and 60° slopes
41.409.31 features an aerodynamic design
1 × 8 mm mounting stud
Optional studs and bolts: 40.142.08

Available Versions

Code	Slope	Base Size	Height	For Pipe Ø	Version	Optional Studs and Bolts	Stud Size
41.309.25	45°	62 × 45 mm	75 mm	Ø25 mm	Standard	40.142.08	8 mm
41.409.30	45°	65 × 48 mm	75 mm	Ø30 mm	Standard	40.142.08	8 mm
41.409.31	45°	84 × 48 mm	70 mm	Ø30 mm	Aerodynamic	40.142.08	8 mm
41.310.25	60°	45 mm	70 mm	Ø25 mm	Standard	40.142.08	8 mm
41.410.30	60°	48 mm	70 mm	Ø30 mm	Standard	40.142.08	8 mm

Technical Specifications

Material	AISI 316 stainless steel
Finish	Mirror-polished
Design	Tapered pulpit base
Pipe Diameter Options	Ø25 mm / Ø30 mm
Available Slopes	45° / 60°
Mounting Stud	1 × 8 mm
Optional Studs and Bolts	40.142.08
