ID
1396485
$ 10.71
1-2 weeks delivery time
Diameter, mm:
- 22
- 25

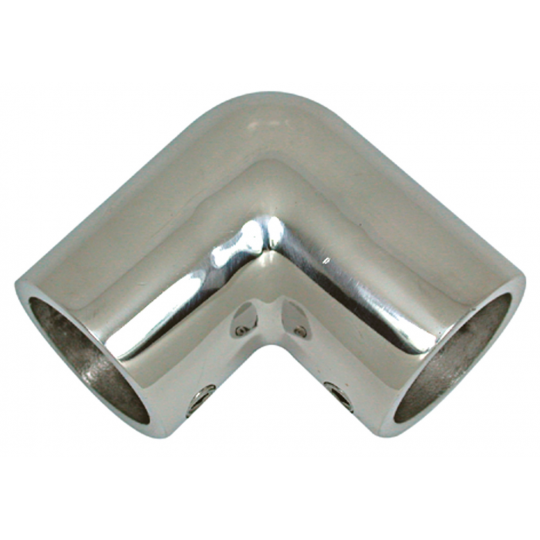

The FNI 90° bow or stern corner is part of the stainless steel pulpit joints and bases range and is designed for connecting pulpit, railing and handrail tubes at a right angle. Made of precision-cast, mirror-polished AISI 316 stainless steel, it is available for Ø22 mm and Ø25 mm tubes. The Ø22 mm version has a B dimension of 49 mm, while the Ø25 mm version measures 51 mm; both have a height (H) of 23 mm.
- Description
- Ask a Question
-
FNI AISI 316 Stainless Steel 90° Bow or Stern Pulpit Corner, Ø22–25 mm
The FNI Bow or Stern Corner is part of the stainless steel pulpit joints and bases range and is designed to form a 90° connection between pulpit, railing or handrail tubes.
The fitting is manufactured from precision-cast AISI 316 stainless steel with a mirror-polished finish. Two versions are available for Ø22 mm and Ø25 mm tubes, with different B dimensions while maintaining the same 23 mm height.
Available Versions
FNI Article Tube Ø B Height (H) Angle EAN 2929460 22 mm 49 mm 23 mm 90° 8052282022654 2929461 25 mm 51 mm 23 mm 90° 8052282022661
Technical Features
- Product type: Bow or stern pulpit corner
- Category: Stainless steel pulpit joints and bases
- Material: AISI 316 stainless steel
- Construction: Precision-cast
- Finish: Mirror-polished
- Connection angle: 90°
- Available tube diameters: Ø22 mm and Ø25 mm
- Dimension B: 49 mm or 51 mm depending on version
- Height (H): 23 mm
-
