The FNI 16° tilted handrail terminal is part of the stainless steel pulpit joints and bases range and is designed for Ø22 mm handrail tubing. Made of precision-cast, mirror-polished AISI 316 stainless steel, the fitting has an overall length (L) of 120 mm and an L1 dimension of 26 mm. FNI article: 2929442.
- Description
- Ask a Question
-

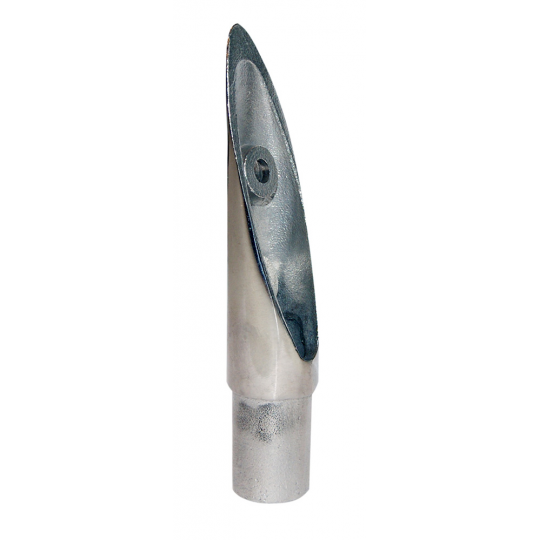

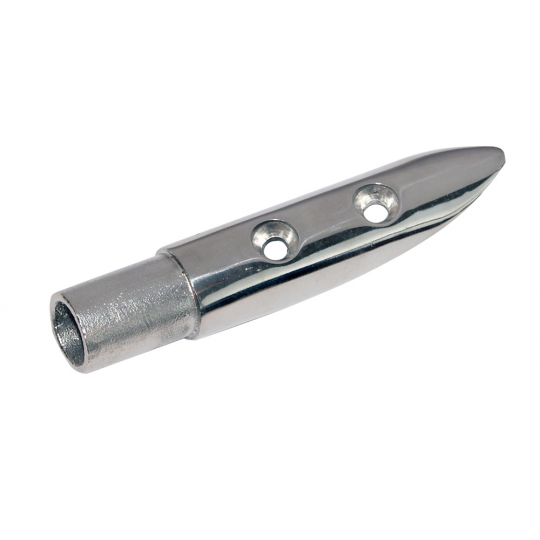

FNI AISI 316 Stainless Steel 16° Tilted Handrail Terminal for Ø22 mm Tube, 120 mm
The FNI 16° tilted handrail terminal is part of the stainless steel pulpit joints and bases range. It is designed for use with Ø22 mm handrail tubing and provides a 16° angled terminal connection.

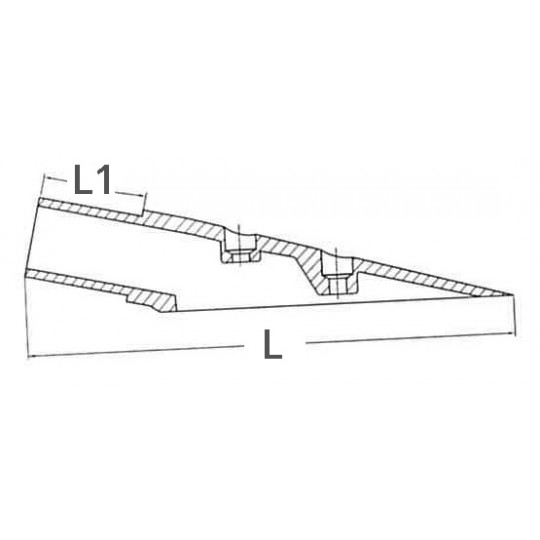

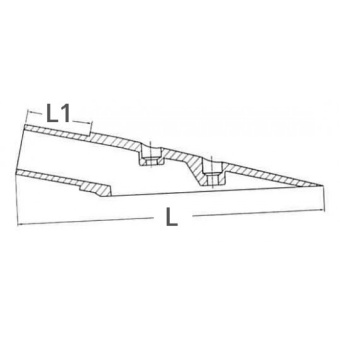

The fitting is manufactured from precision-cast AISI 316 stainless steel with a mirror-polished finish. Its overall length (L) is 120 mm, while the L1 dimension is 26 mm.
Technical Specifications
Brand FNI Article 2929442 Product Type Tilted handrail terminal Category Stainless steel pulpit joints and bases Material AISI 316 stainless steel Construction Precision-cast Finish Mirror-polished Tube Diameter Ø22 mm Tilt Angle 16° Overall Length (L) 120 mm L1 26 mm
Key Features
- 16° tilted handrail terminal
- Designed for Ø22 mm handrail tubing
- Precision-cast AISI 316 stainless steel
- Mirror-polished finish
- Overall length: 120 mm
- L1 dimension: 26 mm
- Two fixing holes
-
