ID
1396498
$ 14.08
1-2 weeks delivery time
Diameter, mm:
- 22
- 25
The FNI 3-way pulpit corner is part of the stainless steel pulpit joints and bases range and is designed for three-direction tube connections in pulpit, railing and handrail systems. Made of precision-cast, mirror-polished AISI 316 stainless steel, it is available for Ø22 mm and Ø25 mm tubes. The Ø22 mm version has a B dimension of 54.5 mm and a height of 29 mm, while the Ø25 mm version measures 56 mm in B and 27 mm in height.
- Description
- Ask a Question
-

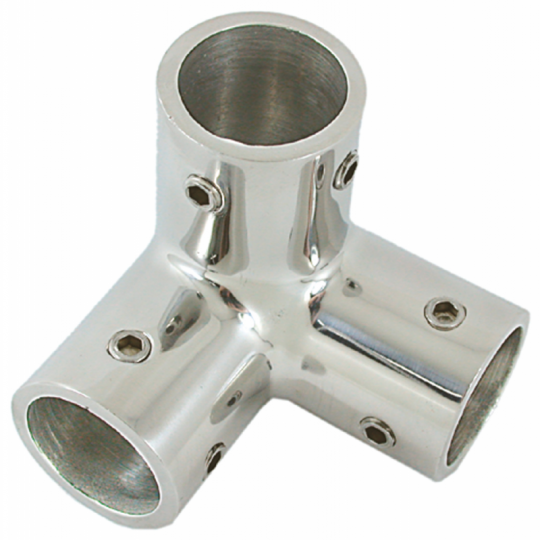

FNI AISI 316 Stainless Steel 3-Way Pulpit Corner, Ø22–25 mm
The FNI 3-way corner is part of the stainless steel pulpit joints and bases range and is designed for three-direction connections in pulpit, railing and handrail tube installations.
The fitting is manufactured from precision-cast AISI 316 stainless steel with a mirror-polished finish. It forms 90° connections and is available in versions for Ø22 mm and Ø25 mm tubes.
Available Versions
FNI Article Tube Ø B Height (H) Angle EAN 2929462 22 mm 54.5 mm 29 mm 90° 8052282022678 2929463 25 mm 56 mm 27 mm 90° 8052282022685
Technical Features
- Product type: 3-way pulpit corner
- Category: Stainless steel pulpit joints and bases
- Material: AISI 316 stainless steel
- Construction: Precision-cast
- Finish: Mirror-polished
- Connection configuration: 3-way corner
- Connection angle: 90°
- Available tube diameters: Ø22 mm and Ø25 mm
- Dimension B: 54.5 mm or 56 mm depending on version
- Height (H): 29 mm or 27 mm depending on version
-
