ID
1379129
$ 22.08
1-2 weeks delivery time
Item:
- Boat 5 meter
- Boat 7 meter
- Boat 9 meter
- Boat 11 meter
- Boat 13 meter

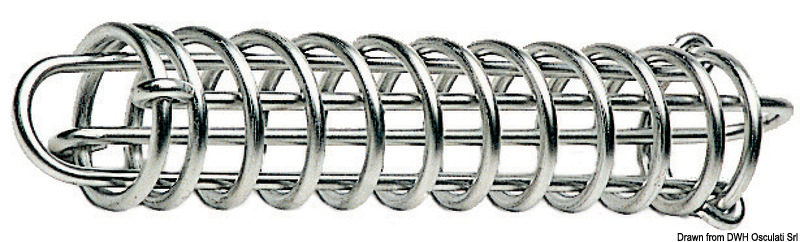

The Osculati Polished Stainless Steel Mooring Compensator Springs are designed to absorb shock loads generated by waves, wind, and vessel movement while moored. Manufactured from high-strength polished stainless steel, these springs provide a durable, non-yielding compensation effect while offering excellent corrosion resistance in marine environments. Available in multiple sizes for boats up to 13 m and displacement up to 10,000 kg. Installation with a safety chain is recommended.
- Description
- Ask a Question
-
Osculati Polished Stainless Steel Mooring Compensator Springs – Heavy Duty Dock Line Shock Absorbers for Boats up to 13 m
The Osculati Mooring Compensator Spring range is designed to reduce shock loads on mooring lines, cleats, bollards, and deck fittings caused by vessel movement during mooring.
Manufactured from high-strength polished stainless steel, these springs provide a long-lasting compensation effect while offering excellent resistance to corrosion in marine environments. They are suitable for a wide range of motorboats, sailing yachts, and permanent mooring installations. For maximum safety, installation together with a safety chain is recommended.
Key Features
- High-strength polished stainless steel construction
- Designed to absorb mooring shock loads
- Long-lasting non-yielding compensation effect
- Excellent corrosion resistance
- Suitable for vessels up to 13 m
- Reduces stress on ropes and deck hardware
- Helps extend mooring line service life
- Recommended for installation with a safety chain
Technical Specifications
Osculati Code Spring Ø (mm) Max Length (mm) Wire Ø (mm) Max Compression Load Weight (kg) Boat Length (m) Max Boat Weight (kg) 01.199.06 50 270 5 95 0.4 Up to 5 1000 01.199.08 62 320 6 140 0.6 Up to 7 2000 01.199.11 69 335 7 200 0.9 Up to 9 3500 01.199.14 81 380 9 250 1.7 Up to 11 7000 01.199.16 89 370 10 450 2.3 Up to 13 10000
Applications
- Marina and harbour moorings
- Stern and bow mooring lines
- Permanent mooring installations
- Motorboats and sailing yachts
- Protection of cleats, bollards, and deck hardware
Benefits
- Absorbs sudden loads caused by waves and wake
- Improves mooring comfort and vessel stability
- Protects ropes from excessive tension
- Extends service life of mooring equipment
- Provides reliable performance in saltwater environments
-
