Osculati 4-Arm Boat & Dinghy Lifting Sling System – 4000 kg, for Boats 4.5-9 m

ID 1381724

$ 498.08

1-2 weeks delivery time

Item:

Boats 4.5–6 m
Boats 6–7.5 m
Boats 7.5–9 m

The Osculati 4-Arm Boat & Dinghy Lifting Sling System is a complete lifting kit designed for safe hauling of boats and rigid inflatables. The adjustable 4-arm configuration provides multiple lifting point combinations for proper balance and can also be configured as a 3-arm lifting system. Available for boats from 4.5 to 9 m, with a 4000 kg breaking load, extension straps, lifting ring, and galvanized shackles included.

Description
Ask a Question

Osculati 4-Arm Boat & Dinghy Lifting Sling System – 4000 kg, for Boats 4.5-9 m

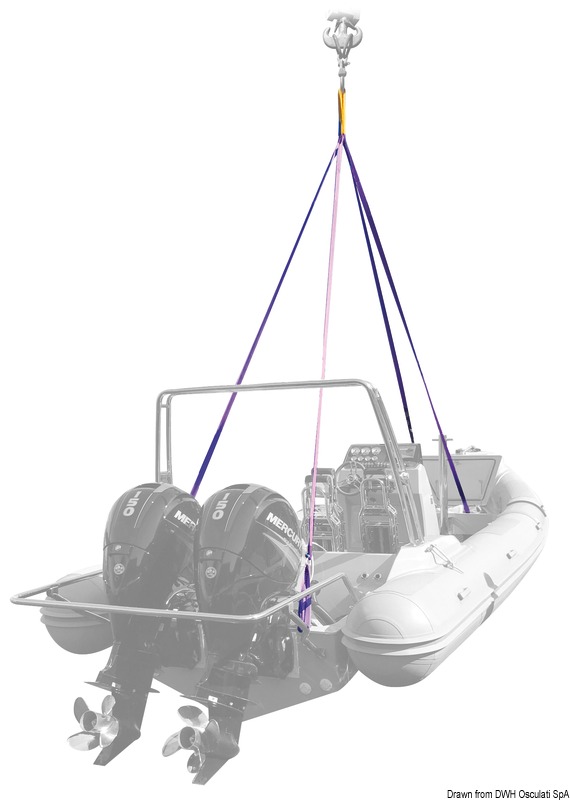

The Osculati 4-Arm Boat & Dinghy Lifting Sling System is a professional lifting solution designed for safely hoisting boats, RIBs, and dinghies while maintaining proper balance throughout the lifting operation. The adjustable sling arrangement provides multiple hook combinations to accommodate different hull sizes and lifting points.

The system is easy to use and quickly adjustable for different haul-out situations. It may also be configured as a 3-arm lifting system when required. Extension straps allow fine adjustment of sling lengths to achieve the correct lifting balance for a wide variety of vessels.

Each kit includes:

2 lifting straps (B);
1 yellow lifting ring for crane attachment (C);
2 extension straps (D), 1 m each;
4 galvanized lifting shackles (E), certified for 2-ton lifting.

The boat-side lifting points can be adjusted by adding half of the extension strap (+0.5 m) or the full extension strap (+1.0 m), providing excellent flexibility for different hull designs.

Available Versions

Osculati Code	Recommended Boat Length	Short Strap A	Long Strap B	Breaking Load
06.587.01	4.5-6 m	300 cm (adjustable 300-350 cm)	330 cm (adjustable 330-480 cm)	4000 kg
06.587.02	6-7.5 m	390 cm (adjustable 390-440 cm)	520 cm (adjustable 520-670 cm)	4000 kg
06.587.03	7.5-9 m	500 cm (adjustable 500-550 cm)	600 cm (adjustable 600-750 cm)	4000 kg

Features

Complete 4-arm lifting sling system for boats and dinghies.
Can also be configured as a 3-arm lifting system.
Multiple adjustment positions for optimal lifting balance.
4000 kg breaking load.
Extension straps included for length adjustment.
Yellow crane lifting ring included.
Supplied with four galvanized lifting shackles.
Suitable for boats from 4.5 to 9 m depending on version.
