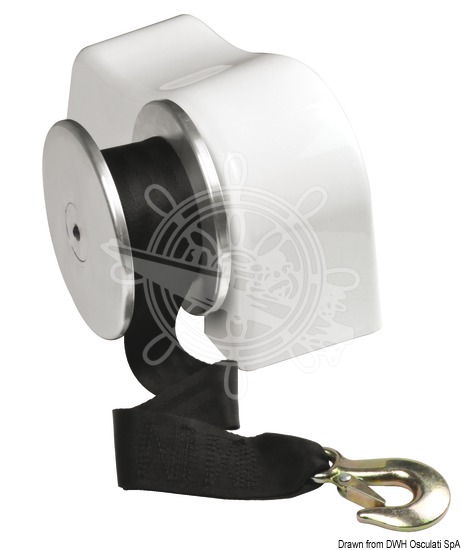

Italwinch Achill Tender Lift Capstan

ID 1380306

$ 1,311.26

1-2 weeks delivery time

Voltage:

Power, W

500
1000

The Italwinch Achill Tender Lift Capstan series is designed for lifting and handling tenders, personal watercraft, and onboard equipment on yachts and powerboats. Suitable for vertical or horizontal installation, the range includes 500 W and 1000 W electric capstans operating on 12 V or 24 V systems. Depending on the version, the Achill Tender delivers up to 1,500 kg maximum instant pull, lifting capacities up to 250 kg, and accommodates lifting straps up to 10 m long. Built for reliable marine operation, the series offers compact installation, smooth lifting performance, and compatibility with optional Italwinch lifting straps.

Description
Ask a Question

Italwinch Achill Tender Lift Capstan 500W & 1000W 12V / 24V

The Italwinch Achill Tender Lift Capstan series is a compact electric lifting solution developed for tender garages, yacht lifting systems and general onboard handling applications. Designed for both vertical and horizontal installation, these capstans provide smooth and reliable lifting performance while occupying minimal installation space.

The range includes three versions to suit different vessel requirements: a 500 W 12 V model, a 500 W 24 V model and a higher-capacity 1000 W 24 V version. Depending on the selected model, the capstan delivers up to 1,500 kg maximum instant pull and supports lifting loads up to 250 kg.

The Achill Tender series is intended for lifting tenders, personal watercraft and onboard equipment using dedicated lifting straps. Optional Italwinch lifting straps are available depending on the selected model.

Key Features

Electric tender lift capstan.
Suitable for vertical or horizontal installation.
Available in 12 V and 24 V versions.
500 W and 1000 W motor options.
Maximum instant pull up to 1,500 kg.
Lifting capacity up to 250 kg.
Compact design for tender garage installations.
Designed for yacht and marine lifting systems.
Compatible with optional Italwinch lifting straps.

Available Versions

Osculati Code	Voltage	Motor Power	Max Instant Pull	Lifting Capacity	Maximum Strap Length
02.618.12	12 V	500 W	650 kg	90 kg	7.5 m
02.618.24	24 V	500 W	660 kg	90 kg	7.5 m
02.619.24	24 V	1000 W	1500 kg	250 kg	10 m

Technical Specifications

Specification	500 W Models	1000 W Model
Product Type	Tender Lift Capstan	Tender Lift Capstan
Voltage	12 V / 24 V	24 V
Motor Power	500 W	1000 W
Maximum Instant Pull	650–660 kg	1500 kg
Lifting Capacity	90 kg	250 kg
Current Draw at Working Load	32–60 A	60 A
Maximum Line Speed	12 m/min	11 m/min
Maximum Strap Length	7.5 m	10 m
Optional Straps	02.090.01 / 02.090.02	02.090.01 / 02.090.02 / 02.090.03
Installation	Vertical or Horizontal	Vertical or Horizontal
Weight	8.5 kg	16 kg

Applications

Tender garage lifting systems.
Yacht tender launch and recovery.
Personal watercraft lifting.
Onboard equipment handling.
Marine lifting and utility installations.

Note: The Italwinch Achill Tender Lift Capstan series includes three versions with different power ratings, lifting capacities and strap lengths. These products are also distributed under Osculati references 02.618.12, 02.618.24 and 02.619.24. Please verify the required voltage, lifting capacity and compatible lifting strap before ordering.
