The Lewmar CRW400 Captive Reel Windlass is a compact 12 V electric captive reel windlass designed for boats up to 9 m (30 ft). Built with an AISI 316 stainless steel chassis, composite bearing technology, and a UV-stabilised ABS housing, it offers excellent corrosion resistance for marine environments. The captive reel stores up to 35 m of 6 mm rope directly on the internal drum, while the level-wind mechanism ensures even rope distribution. Delivering a maximum pull of 275 kg and recovery speeds up to 25 m/min, the CRW400 provides reliable rope handling for compact boats and tender lifting applications.
- Description
- Ask a Question
-
Lewmar CRW400 Captive Reel Windlass 12V 400W

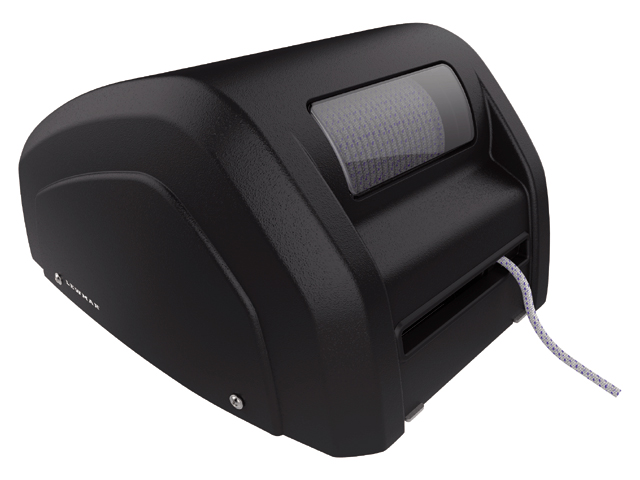

The Lewmar CRW400 is a compact electric captive reel windlass engineered for boats up to 9 metres (30 ft). Unlike conventional rope-and-chain windlasses, the captive reel design stores the rope directly on an internal drum, providing controlled deployment and retrieval from a compact self-contained unit.

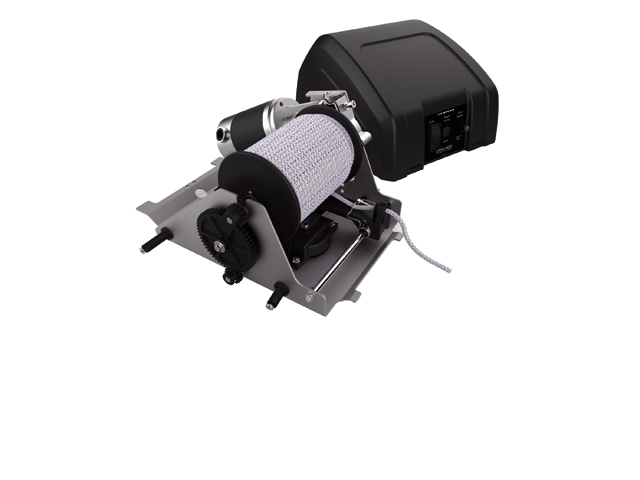

The windlass is constructed around a durable AISI 316 stainless steel chassis with composite bearing technology and a UV-stabilised ABS housing for long-term resistance to corrosion and harsh marine conditions. An integrated level-wind mechanism distributes the rope evenly across the drum during operation for smooth and consistent performance.
Powered by a 400 W, 12 V motor, the CRW400 accommodates up to 35 metres of 6 mm rope, delivers a maximum pulling force of 275 kg, and offers retrieval speeds of up to 25 m/min. The unit is suitable for rope-based anchoring systems as well as tender lifting and other compact marine applications.
Key Features
- Compact electric captive reel windlass.
- Designed for boats up to 9 m (30 ft).
- AISI 316 stainless steel structural chassis.
- UV-stabilised ABS protective housing.
- Composite bearing technology.
- Captive reel stores rope directly on the internal drum.
- Integrated level-wind mechanism for even rope distribution.
- Supports remote operation.
- Suitable for saltwater marine environments.
Technical Specifications
Specification Value Manufacturer Lewmar Osculati Reference 02.537.01 Model CRW400 Product Type Electric Captive Reel Windlass Voltage 12 V Motor Power 400 W Maximum Pull 275 kg Maximum Recovery Speed 25 m/min Current Draw 15 A Maximum Anchor Weight 16 kg Compatible Rope Diameter 6 mm Maximum Rope Capacity 35 m Recommended Boat Length Up to 9 m (30 ft) Chassis Material AISI 316 Stainless Steel Housing Material UV-Stabilised ABS Dimensions (L × W × H) 365 × 303 × 188 mm Weight 10 kg
Typical Applications
- Small powerboats and sailing boats.
- Boats up to 9 m (30 ft).
- Rope-based anchoring systems.
- Tender lifting systems.
- Compact marine installations with captive rope storage.
-
