ID
1400988
$ 9.74
1-2 weeks delivery time
Diameter, mm:
- 50
- 75
- 90
- 110
- 125
Weight, kg:
- 167 g
- 480 g
- 720 g
- 1100 g
- 2780 g
Item:
- Packaged
- Bulk + Screws
Super Marine zinc rosette disc anodes for sacrificial corrosion protection of marine underwater metal components. The zinc range includes outside diameters from Ø50 to Ø190 mm with weights from 167 g to 4.00 kg. Depending on the model, the anodes are supplied packaged, as individual bulk units or in bulk with mounting screws. VDM catalogue codes include ANO601, ANO600, ANO602, ANO620, ANO630, ANO632, ANO50100U, ANO50100 and ANO60100.
- Description
- Ask a Question
-
Super Marine Zinc Rosette Disc Anodes – Ø50–190 mm

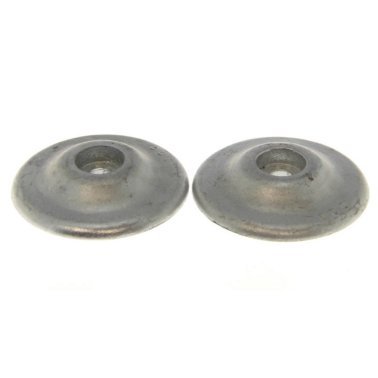

The Super Marine zinc rosette disc anodes are sacrificial anodes designed for corrosion protection of underwater metal components in marine installations.
The range covers outside diameters from Ø50 to Ø190 mm and includes several supply configurations. Depending on the VDM catalogue code, the anodes are supplied packaged, as individual bulk units or in bulk with mounting screws.
Available Zinc Models
VDM Code Outside Diameter Material Weight Supply ANO601 Ø50 mm Zinc 0.167 kg Packaged ANO900601 Ø50 mm Zinc 0.167 kg Bulk + Screws ANO600 Ø75 mm Zinc 0.48 kg Packaged ANO900600 Ø75 mm Zinc 0.48 kg Bulk + Screws ANO602 Ø90 mm Zinc 0.72 kg Packaged ANO900602 Ø90 mm Zinc 0.72 kg Bulk + Screws ANO620 Ø110 mm Zinc 1.10 kg Packaged ANO900620 Ø110 mm Zinc 1.10 kg Bulk + Screws ANO630 Ø125 mm Zinc 1.39 kg Bulk, Individual Unit ANO632 Ø125 mm Zinc 2.78 kg Bulk + Screws ANO50100U Ø140 mm Zinc 2.20 kg Bulk, Individual Unit ANO50100 Ø140 mm Zinc 4.00 kg Bulk + Screws ANO60100 Ø190 mm Zinc 3.80 kg Bulk + Screws
Key Features
- Brand: Super Marine
- Material: Zinc
- Type: Rosette disc anode
- Outside Diameter Range: Ø50–190 mm
- Weight Range: 0.167–4.00 kg
- Supply Options: Packaged, bulk individual unit or bulk with screws
- Catalogue: VDM / Reya
Select the appropriate version according to the required outside diameter, anode weight and supply configuration.
-
