Plastimo Zinc Weld-On Anodes with Galvanised Steel Fixing Strap

ID 1401208

$ 22.84

1-2 weeks delivery time

Size:

190x110x60x28
250x150x90x45
250x150x90x40
170x110x60x20
250x145x90x35
290x150x90x35

Item:

1000 g
2500 g
3000 g
2200 g
600 g
3300 g

Plastimo zinc weld-on sacrificial anodes with integrated galvanised steel fixing straps, available in seven configurations from 0.6 to 3.3 kg. The range includes Plastimo 38214, 38215, 38216, 40236, 39338, 476512 and 420915, with different anode dimensions and steel strap sections. Corresponding OEM references are ZS033 VRAC, ZS031 VRAC, ZS028 VRAC, ZS034, ZS052, ZS030 and ZS059. The zinc is specified by Plastimo as compliant with MIL-A-18001K.

Description
Ask a Question

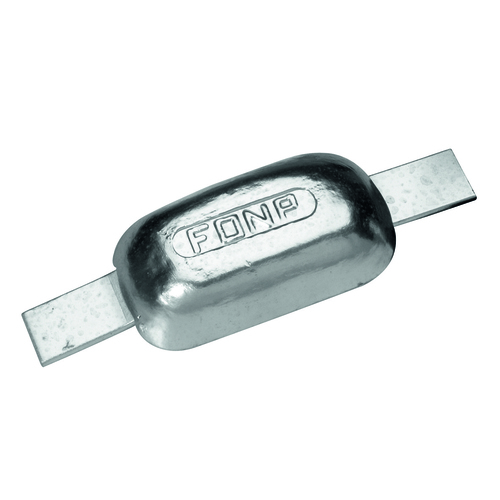

Plastimo Zinc Weld-On Anodes with Galvanised Steel Fixing Strap – 0.6–3.3 kg

The Plastimo zinc weld-on anodes are sacrificial anodes fitted with integrated galvanised steel fixing straps for weld-on installation. The range includes seven variants with different anode dimensions, fixing-strap sections and zinc weights.

Plastimo specifies the zinc used in this range as MIL-A-18001K compliant. Select the appropriate version according to the required dimensions, anode weight and OEM reference.

Available Models

Plastimo Code	OEM P/N	Weight
38214	ZS033 VRAC	1.0 kg
38215	ZS031 VRAC	2.2 kg
38216	ZS028 VRAC	3.0 kg
40236	ZS034	0.6 kg
39338	ZS052	2.2 kg
476512	ZS030	2.5 kg
420915	ZS059 (F-3 KG3,3)	3.3 kg

Catalogue Dimensions

Plastimo Code	A	B	C	D	E	F
38214	190 mm	110 mm	60 mm	28 mm	25x4 mm	-
38215	250 mm	150 mm	90 mm	45 mm	30x4 mm	-
38216	250 mm	150 mm	90 mm	40 mm	30x4 mm	-
40236	170 mm	110 mm	60 mm	20 mm	25x4 mm	-
39338	250 mm	145 mm	90 mm	35 mm	30x4 mm	-
476512	290 mm	150 mm	90 mm	35 mm	30x4 mm	235 mm
420915	250 mm	150 mm	90 mm	45 mm	30x4 mm	-

Key Features

Brand: Plastimo
Material: Zinc, MIL-A-18001K compliant
Type: Weld-on sacrificial anode
Fixing: Galvanised steel strap
Steel Strap Sections: 25x4 mm or 30x4 mm
Available Weights: 0.6, 1.0, 2.2, 2.5, 3.0 and 3.3 kg
