MgDuff Neoprene Anode Backing Plates for Hull & Rudder Anodes, B Series

MgDuff Neoprene Anode Backing Plates for Hull and Rudder Anodes – B Series

The MgDuff Neoprene Anode Backing Plate is designed for installation behind compatible hull and rudder anodes. It helps prevent wear on the rear surface of the anode, reducing the risk of the anode becoming loose during use.

Manufactured from neoprene, the backing plates are available in seven models with different dimensions and anode compatibility. Each version is designed for specific MgDuff anode models, allowing selection according to the anode type and required installation dimensions.

Key Features

• Brand: MgDuff
• Product Type: Anode backing plate
• Material: Neoprene
• Application: Backing plate for compatible hull and rudder anodes
• Function: Prevents wear on the rear surface of the anode and helps reduce the risk of loosening
• Available Models: B56, B58, B72B, B76EURO, B77, B77EURO and B78B
• Length Range: 97–445 mm
• Width Range: 65–127 mm
• Thickness: 5 or 6 mm, depending on the model

Technical Specifications and Available Models

The MgDuff backing plate range includes seven models with different dimensions and compatibility specifications. All dimensions are specified in millimetres.

Construction and Function

The MgDuff backing plate is manufactured from neoprene and is intended to be positioned behind the anode. Its primary function is to prevent wear on the rear surface of the anode and help prevent the anode from becoming loose.

• Neoprene Construction: Material specified for the backing plate.
• Wear Prevention: Designed to protect the rear surface of the anode against wear.
• Loosening Prevention: Helps reduce the risk of the anode becoming loose.
• Model-Specific Design: Available in different dimensions for compatible MgDuff anodes.

Dimensions and Model Selection

The backing plates are available in seven sizes. Dimensions are specified as length × width × thickness.

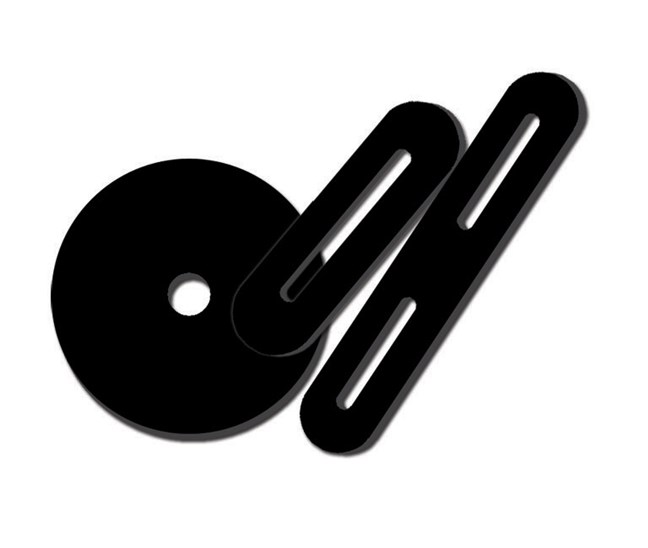

• B56: 97 × 80 × 5 mm. Suitable for AD56 and ZD56 anodes.
• B58: 140 × 127 × 6 mm. Suitable for AD58 and ZD58 anodes.
• B72B: 445 × 96 × 6 mm. Suitable for AD72B and ZD72B anodes.
• B76EURO: 200 × 65 × 5 mm. Suitable for AD76 and ZD76 anodes.
• B77: 225 × 77 × 6 mm. Listed for AD76 and ZD77 anodes.
• B77EURO: 322 × 70 × 5 mm. Suitable for AD77 Euro and ZD77 Euro anodes.
• B78B: 300 × 75 × 6 mm. Suitable for AD78B and ZD78B anodes.

When selecting a backing plate, check the product number and the specified compatible anode models. The length, width and thickness should also be compared with the required installation dimensions.

Installation and Application

The neoprene backing plate is designed to be installed behind a compatible MgDuff anode. It helps protect the rear surface of the anode against wear, which can otherwise contribute to the anode becoming loose.

The backing plate should be selected according to the specific anode model. The available versions cover different hull and rudder anode configurations, with lengths ranging from 97 to 445 mm and thicknesses of 5 or 6 mm.
