MgDuff Magnesium Teardrop Weld-On Hull & Rudder Anodes MD76 / MD77

ID 1398658

$ 25.75

1-2 weeks delivery time

Size:

114x76x32
157x83x41

The MgDuff Magnesium Teardrop Anode is a sacrificial anode designed to protect boat hulls and rudders against galvanic corrosion. Available in two models: MD76 (114 × 76 × 32 mm) with a 160 mm mounting strip and 140 mm mounting hole spacing, and MD77 (157 × 83 × 41 mm) with a 230 mm mounting strip and 200 mm mounting hole spacing. Both models feature a teardrop-shaped magnesium body with an extended mounting strip. The MD76 is specified for saltwater applications, while the MD77 is described for freshwater and saltwater use. Each model is supplied individually.

Description
Ask a Question

MgDuff Magnesium Teardrop Weld-On Hull and Rudder Anodes – MD76 / MD77

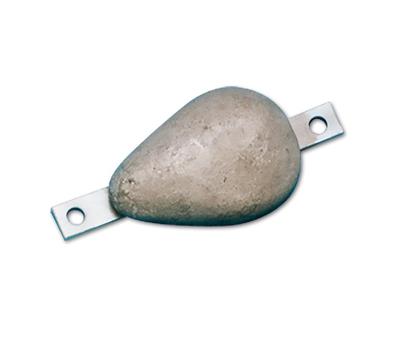

The MgDuff Magnesium Teardrop Anode is a sacrificial anode designed to protect boat hulls and rudders against galvanic corrosion. Manufactured from magnesium, it features a teardrop-shaped body with an extended mounting strip for installation on the vessel.

The range includes two models: MD76 and MD77. They differ in body dimensions, mounting strip length and mounting hole spacing. Both versions are designed for underwater hull and rudder applications, providing sacrificial corrosion protection for marine metal components.

Key Features

Brand: MgDuff
Product Type: Sacrificial hull and rudder anode
Material: Magnesium
Shape: Teardrop
Design: Extended mounting strip with mounting holes
Application: Boat hulls and rudders
Function: Protection against galvanic corrosion
Available Models: MD76 and MD77
Sales Unit: 1 piece

Technical Specifications and Available Models

Specification	MD76	MD77
Product Number	1795	1796
Material	Magnesium	Magnesium
Shape	Teardrop	Teardrop
Body Length	114 mm	157 mm
Body Width	76 mm	83 mm
Body Height	32 mm	41 mm
Mounting Strip Length	160 mm	230 mm
Mounting Hole Spacing (H.o.H.)	140 mm	200 mm
Sales Unit	1 piece	1 piece

Dimensions and Model Selection

The MgDuff magnesium anode range includes two teardrop-shaped models with different body dimensions and mounting arrangements. Body dimensions are specified as length × width × height.

MD76 (1795): Magnesium anode measuring 114 × 76 × 32 mm, with a mounting strip length of 160 mm and mounting hole spacing of 140 mm.
MD77 (1796): Magnesium anode measuring 157 × 83 × 41 mm, with a mounting strip length of 230 mm and mounting hole spacing of 200 mm.

When selecting an anode, consider the body dimensions, mounting strip length and centre-to-centre mounting hole spacing to match the required installation dimensions.

Construction and Installation

Both models feature a teardrop-shaped magnesium body with a mounting strip extending beyond the anode. The strip features mounting holes, with different hole spacings depending on the model.

Anode Body: Teardrop-shaped magnesium construction.
Mounting Arrangement: Extended strip with mounting holes.
Strip Length: 160 mm for MD76 and 230 mm for MD77.
Hole Spacing: 140 mm for MD76 and 200 mm for MD77.
Installation Location: Boat hull or rudder.
Application: Underwater corrosion protection.

Galvanic Corrosion Protection

The magnesium anode functions as a sacrificial component, corroding preferentially to help protect other metal parts of the vessel against galvanic corrosion.

The MD76 model is described for saltwater environments. The MD77 model is described for use in both freshwater and saltwater environments.

The two models provide different body sizes and mounting dimensions for hull and rudder installations.
