MgDuff Magnesium Round Hull and Rudder Dish-Shaped Anodes, Ø100–150 mm, MD56 / MD58

ID 1398717

$ 35.14

1-2 weeks delivery time

Diameter, mm:

The MgDuff Magnesium Round Hull and Rudder Anode is a dish-shaped sacrificial anode designed to protect boat hulls and rudder blades against galvanic corrosion in freshwater environments. Its dish-shaped profile is designed to minimise water resistance during operation. Available in two models: MD56 (Ø100 × 25 mm, product number 1786) and MD58 (Ø150 × 35 mm, product number 1787). Manufactured from magnesium, both versions feature a central mounting opening and provide sacrificial corrosion protection for underwater metal components. Supplied individually.

Description
Ask a Question

MgDuff Magnesium Round Hull and Rudder Anodes – Dish-Shaped, Ø100–150 mm, MD56 / MD58

The MgDuff Magnesium Round Hull and Rudder Anode is a sacrificial anode designed to protect metal components of boat hulls and rudder blades against galvanic corrosion. Manufactured from magnesium, the range is intended for freshwater applications.

The anode features a round, dish-shaped profile designed to minimise water resistance when installed on underwater surfaces. Two models are available: MD56, measuring 100 mm in diameter and 25 mm in height, and MD58, measuring 150 mm in diameter and 35 mm in height. Both versions feature a central mounting opening.

Key Features
- Brand: MgDuff
- Product Type: Sacrificial hull and rudder anode
- Material: Magnesium
- Shape: Round
- Profile: Dish-shaped design
- Application: Boat hulls and rudder blades
- Suitable Water Type: Freshwater
- Function: Sacrificial protection against galvanic corrosion
- Design Feature: Dish-shaped profile intended to minimise water resistance
- Mounting Arrangement: Central mounting opening
- Available Models: MD56 and MD58
- Diameter Range: 100–150 mm
- Height Range: 25–35 mm
- Sales Unit: 1 piece
Technical Specifications and Available Models

The MgDuff magnesium anode range includes two models with different external diameters and heights. All dimensions are specified in millimetres.

Specification MD56 MD58

Product Number 1786 1787

Material Magnesium Magnesium

Shape Round Round

Diameter 100 mm 150 mm

Height 25 mm 35 mm

Sales Unit 1 piece 1 piece

Dimensions and Model Selection

The MD56 and MD58 models differ in their external diameter and overall height. Dimensions are specified as diameter × height.
- MD56 (1786): Round magnesium anode measuring Ø100 × 25 mm.
- MD58 (1787): Round magnesium anode measuring Ø150 × 35 mm.
The MD56 has a diameter of 100 mm and a height of 25 mm, while the MD58 has a larger diameter of 150 mm and a height of 35 mm.

When selecting a replacement anode, compare the diameter, height and mounting arrangement with the existing installation.

Construction and Mounting

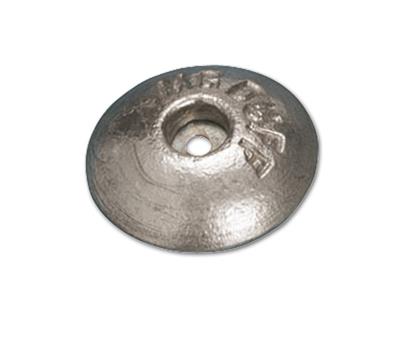

The MgDuff magnesium anodes feature a round body with a dish-shaped profile. This design is intended to minimise water resistance when installed on the hull or rudder blade.

Both models feature a central mounting opening. The diameter and height of the anode vary according to the selected model.
- Anode Material: Magnesium.
- Body Shape: Round.
- Profile: Dish-shaped.
- Mounting Feature: Central opening.
- Installation Location: Boat hull or rudder blade.
Galvanic Corrosion Protection

The magnesium anode acts as a sacrificial component, corroding preferentially to help protect other metal parts of the vessel against galvanic corrosion.

The range is designed for hull and rudder applications in freshwater environments. Its dish-shaped construction is intended to limit water resistance while providing sacrificial protection for underwater metal components.

Product Identification

Model Product Number EAN Code

MD56 1786 5060333961343

MD58 1787 5060333964986

Sales Unit: 1 magnesium hull and rudder anode.
