ID
1400457
$ 4.21
1-2 weeks delivery time
Diameter, mm:
- 50
- 70
- 90
- 110
- 125
- 140
E. Polipodio zinc anodes for hull and transom applications, available in six sizes from Ø50 to Ø140 mm. Depending on the model, anode thickness ranges from 12 to 26 mm and the central mounting-hole diameter from Ø8 to Ø12 mm. The range includes NC023 Ø50x12 with Ø8 hole, NC024 Ø70x17 with Ø8 hole, NC025 Ø90x20 with Ø8 hole, NC026 Ø110x25 with Ø10 hole, NC027 Ø125x22 with Ø10 hole and NC028 Ø140x26 with Ø12 hole. All versions are manufactured from zinc (ZN).
- Description
- Ask a Question
-
E. Polipodio Zinc Disc Anodes for Hull & Transoms – Ø50–140 mm
The E. Polipodio Zinc Anodes for Hull & Transoms are available in six dimensional configurations with outside diameters from Ø50 to Ø140 mm. All versions are manufactured from zinc (ZN).
Dimension A represents the overall anode diameter, dimension B the anode thickness, and dimension C the diameter of the central mounting hole. Depending on the selected model, thickness ranges from 12 to 26 mm and the central hole from Ø8 to Ø12 mm.
Key Features
- Brand: E. Polipodio
- Product Type: Hull & transom anode
- Material: Zinc (ZN)
- Outside Diameter Range: Ø50–140 mm
- Thickness Range: 12–26 mm
- Central Hole Range: Ø8–12 mm
Available Models and Technical Specifications
E. Polipodio Reference Trem Reference Diameter A Thickness B Hole C Material NC023 L8120005 Ø50 mm 12 mm Ø8 mm Zinc (ZN) NC024 L8120007 Ø70 mm 17 mm Ø8 mm Zinc (ZN) NC025 L8120009 Ø90 mm 20 mm Ø8 mm Zinc (ZN) NC026 L8120011 Ø110 mm 25 mm Ø10 mm Zinc (ZN) NC027 L8120012 Ø125 mm 22 mm Ø10 mm Zinc (ZN) NC028 L8120014 Ø140 mm 26 mm Ø12 mm Zinc (ZN)
Cross References
- NC023 / Trem L8120005: Ø50 x 12 mm, hole Ø8 mm, EAN 8024827644379
- NC024 / Trem L8120007: Ø70 x 17 mm, hole Ø8 mm, EAN 8024827644386
- NC025 / Trem L8120009: Ø90 x 20 mm, hole Ø8 mm, EAN 8024827644393
- NC026 / Trem L8120011: Ø110 x 25 mm, hole Ø10 mm, EAN 8024827644409
- NC027 / Trem L8120012: Ø125 x 22 mm, hole Ø10 mm, EAN 8024827644416
- NC028 / Trem L8120014: Ø140 x 26 mm, hole Ø12 mm, EAN 8024827644423

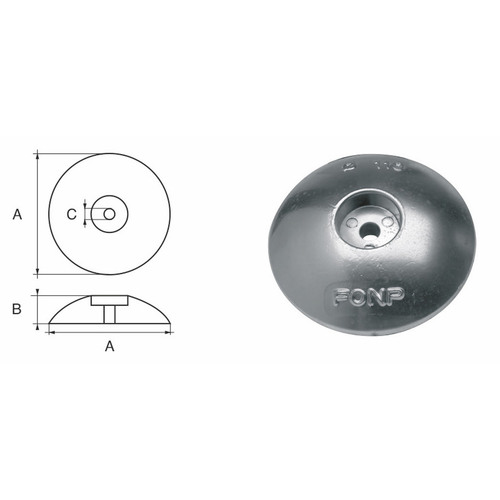

Dimensions for Model Selection
- A: Overall anode diameter
- B: Anode thickness
- C: Central mounting-hole diameter
Select the required version according to the overall diameter, thickness and central mounting-hole diameter.
-
