Talamex flat zinc shaft collar anodes for marine propeller shafts, available for shaft diameters from Ø20 to Ø40 mm. The split collar design is secured around the shaft with two bolted connections. Models for Ø20–30 mm shafts have an external diameter of Ø60 mm and a height of 15 mm, while the Ø35 and Ø40 mm versions measure Ø74x18 mm. Weights range from 0.18 to 0.35 kg.
- Description
- Ask a Question
-

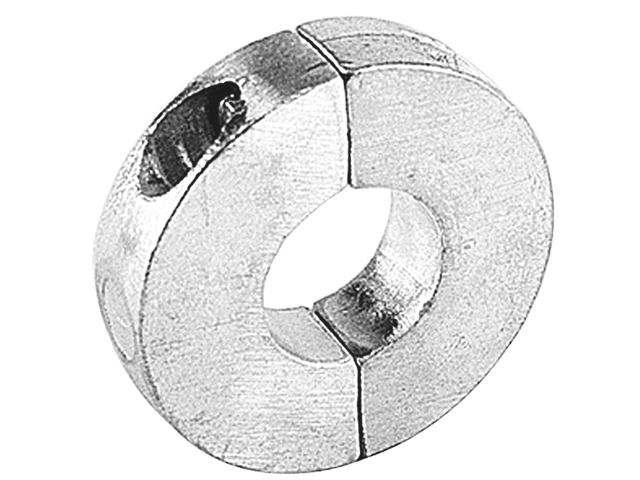

Talamex Zinc Flat Shaft Collar Anodes – Shaft Ø20–40 mm
The Talamex zinc flat shaft collar anodes are sacrificial anodes designed for installation around marine propeller shafts.
The split ring construction allows the collar to be fitted around the shaft and secured with two bolted connections. The range covers shaft diameters from Ø20 to Ø40 mm.
Versions for Ø20, Ø25, Ø28 and Ø30 mm shafts have an external diameter of Ø60 mm and a height of 15 mm. The larger Ø35 and Ø40 mm versions have an external diameter of Ø74 mm and a height of 18 mm.
Available Models
Talamex Code Shaft Ø (A) External Ø (B) Height (H) Weight 45.812.020 20 mm 60 mm 15 mm 0.22 kg 45.812.025 25 mm 60 mm 15 mm 0.20 kg 45.812.028 28 mm 60 mm 15 mm 0.19 kg 45.812.030 30 mm 60 mm 15 mm 0.18 kg 45.812.035 35 mm 74 mm 18 mm 0.35 kg 45.812.040 40 mm 74 mm 18 mm 0.32 kg
Key Features
- Brand: Talamex
- Type: Propeller shaft collar sacrificial anode
- Material: Zinc
- Shape: Flat ring
- Configuration: Split collar
- Mounting: Two bolted connections
- Shaft Diameter Range: Ø20–40 mm
- External Diameter: Ø60 or Ø74 mm
- Height: 15 or 18 mm
- Weight Range: 0.18–0.35 kg
Select the required version according to the propeller shaft diameter.
-
