ID
1401535
$ 21.48
1-2 weeks delivery time
Shaft Diameter:
- 20
- 25
- 28
- 30
- 35
- 40
Item:
- 110 g
- 200 g
- 120 g
- 220 g
Talamex flat aluminium shaft collar anodes for marine propeller shafts, available for shaft diameters from Ø20 to Ø40 mm. The split collar design mounts around the shaft and is secured from both sides. Versions for Ø20–30 mm shafts measure Ø60x15 mm, while the Ø35 and Ø40 mm models measure Ø74x18 mm. Weights range from 0.11 to 0.22 kg.
- Description
- Ask a Question
-
Talamex Aluminium Flat Shaft Collar Anodes – Shaft Ø20–40 mm

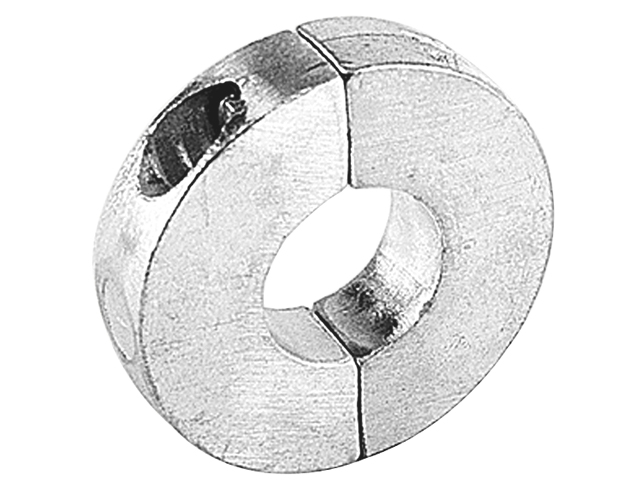

The Talamex aluminium flat shaft collar anodes are split sacrificial anodes designed for installation around marine propeller shafts.
The range covers shaft diameters from Ø20 to Ø40 mm. Models for Ø20, Ø25, Ø28 and Ø30 mm shafts have an external diameter of Ø60 mm and a height of 15 mm. The Ø35 and Ø40 mm versions have an external diameter of Ø74 mm and a height of 18 mm.
Available Models
Talamex Code Shaft Ø (A) External Ø (B) Height (H) Weight 45.812.120 20 mm 60 mm 15 mm 0.12 kg 45.812.125 25 mm 60 mm 15 mm 0.12 kg 45.812.128 28 mm 60 mm 15 mm 0.11 kg 45.812.130 30 mm 60 mm 15 mm 0.11 kg 45.812.135 35 mm 74 mm 18 mm 0.22 kg 45.812.140 40 mm 74 mm 18 mm 0.20 kg
Key Features
- Brand: Talamex
- Type: Propeller shaft collar sacrificial anode
- Material: Aluminium
- Shape: Flat ring
- Configuration: Split collar
- Shaft Diameter Range: Ø20–40 mm
- External Diameter: Ø60 or Ø74 mm
- Height: 15 or 18 mm
- Weight Range: 0.11–0.22 kg
Select the required version according to the propeller shaft diameter.
-
