Name: E. Polipodio J-Prop Zinc Propeller Anodes Ø60–90 mm
SKU: Trem L8119134

E. Polipodio J-Prop Zinc Propeller Anodes Ø60–90 mm

ID 1400352

$ 27.85

1-2 weeks delivery time

Size:

Ø80x10x33
Ø60x8.5x27
Ø90x10x37

E. Polipodio zinc anodes for J-Prop propeller applications, available in three dimensional configurations. The range includes outside diameters A of Ø60, Ø80 and Ø90 mm, heights H from 27 to 37 mm and dimension B of 8.5 or 10 mm. All versions are manufactured from zinc (ZN). Select the required anode according to outside diameter A, dimension B and overall height H.

Description
Ask a Question

E. Polipodio J-Prop Zinc Propeller Anodes – Ø60–90 mm

The E. Polipodio J-Prop Zinc Anodes are designed for J-Prop propeller applications and are available in three dimensional configurations. All versions shown in the Trem catalogue are manufactured from zinc (ZN).

The range includes anodes with outside diameter A from Ø60 to Ø90 mm, dimension B from 8.5 to 10 mm and overall height H from 27 to 37 mm.

Key Features
- Brand: E. Polipodio
- Catalogue: Trem
- Type: J-Prop propeller anode
- Material: Zinc (ZN)
- Outside Diameter A: Ø60–90 mm
- Dimension B: 8.5–10 mm
- Height H: 27–37 mm
Available Models and Technical Specifications

E. Polipodio Reference Trem Reference A B H Material

OG041 L8119134 Ø80 mm 10 mm 33 mm Zinc

OG042 L8119139 Ø60 mm 8.5 mm 27 mm Zinc

OG042G L8119149 Ø90 mm 10 mm 37 mm Zinc

E. Polipodio OG041 / Trem L8119134
- Outside Diameter A: Ø80 mm
- B: 10 mm
- Height H: 33 mm
- Material: Zinc
- EAN: 8024827646199
E. Polipodio OG042 / Trem L8119139
- Outside Diameter A: Ø60 mm
- B: 8.5 mm
- Height H: 27 mm
- Material: Zinc
- EAN: 8024827646205
E. Polipodio OG042G / Trem L8119149
- Outside Diameter A: Ø90 mm
- B: 10 mm
- Height H: 37 mm
- Material: Zinc
- EAN: 8024827646212

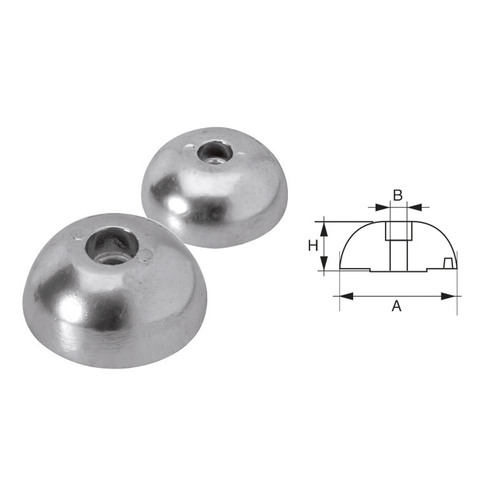

Dimensions for Model Selection
- A: Outside diameter
- B: Dimension B according to the catalogue drawing
- H: Overall height
Select the required J-Prop anode according to dimensions A, B and H.
