BPS Marine PRO-2, part number 24V-PRO-2, is a two-transducer ultrasonic antifouling system designed to protect hulls up to 40 ft long, as well as drives, rudders, stabilizers and other underwater components. The 24V DC system uses a multi-frequency ultrasonic sweep from 20 kHz to 42 kHz, provides up to 120 W of transducer output and has an average power draw of 0.5 Ah. The package includes one PRO-2 control module, two submersible ultrasonic transducers with 15 ft of cable each, an epoxy kit and a printed installation and operation manual.
- Description
- Ask a Question
-

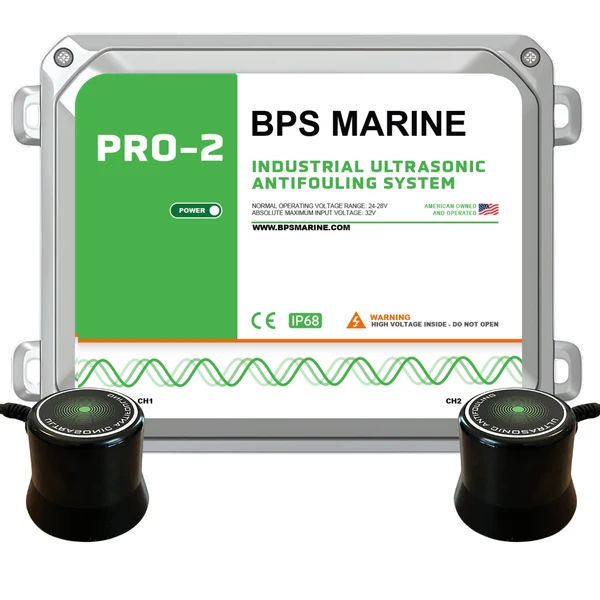

BPS Marine PRO-2 Ultrasonic Antifouling System – 2 Transducers, 24V DC
The BPS Marine PRO-2, part number 24V-PRO-2, is a two-transducer ultrasonic antifouling system designed for hulls up to 40 ft in length. It can also provide antifouling protection for drives, rudders, stabilizers and other underwater components, while additional systems may be combined for larger vessels.
The system emits high-frequency ultrasonic waves through the hull and connected structures. Its multi-frequency ultrasonic sweep algorithm operates between 20 kHz and 42 kHz to help prevent biofouling from attaching to protected surfaces.
Key Features
- Two-transducer ultrasonic antifouling system
- Suitable for hulls up to 40 ft in length
- Can protect hulls, drives, rudders, stabilizers and other underwater components
- 24V DC operation
- Multi-frequency ultrasonic sweep from 20 kHz to 42 kHz
- Up to 120 W of transducer output
- 15 ft connected signal cable per transducer
- No thru-hull installation required
- Transducers mount directly to the hull surface using the supplied epoxy
- Chemical-free antifouling operation
- Automatic operation with no scheduled maintenance required
Technical Specifications
Specification Value Part Number 24V-PRO-2 System Type Two-transducer ultrasonic antifouling system Voltage 24V DC Average Power Draw 0.5 Ah Transducer Output Up to 120 W Frequency Multi-frequency ultrasonic sweep, 20 kHz–42 kHz Transducer Cable Length 15 ft per transducer Hull Length Up to 40 ft Number of Control Units 1 Number of Transducers 2
Installation
The transducers are installed directly on top of the hull surface using the supplied epoxy, so no thru-hull fittings are required. Each transducer has 15 ft of connected signal cable for routing to the PRO-2 controller.
The PRO-2 controller operates from the boat's existing house battery and uses a two-wire connection to the battery bank or distribution panel.
Package Includes
- 1 × PRO-2 control module with integrated power cable
- 2 × submersible ultrasonic transducers with 15 ft of cable each
- 1 × epoxy kit
- 1 × printed installation and operation manual
-
