ID
1388190
$ 4,062.90
1-2 weeks delivery time
-
+
BPS Marine BPS-6 is a six-transducer ultrasonic antifouling system designed to protect hulls up to 65 ft long, as well as drives, rudders, stabilizers and other underwater components. It is also suitable as a single-system solution for vessels under 52 ft with pods or stern drives. The 12V DC system uses a multi-frequency ultrasonic sweep from 20 kHz to 42 kHz, provides up to 60 W of transducer output and has an average power draw of 1.5 Ah.
- Description
- Ask a Question
-

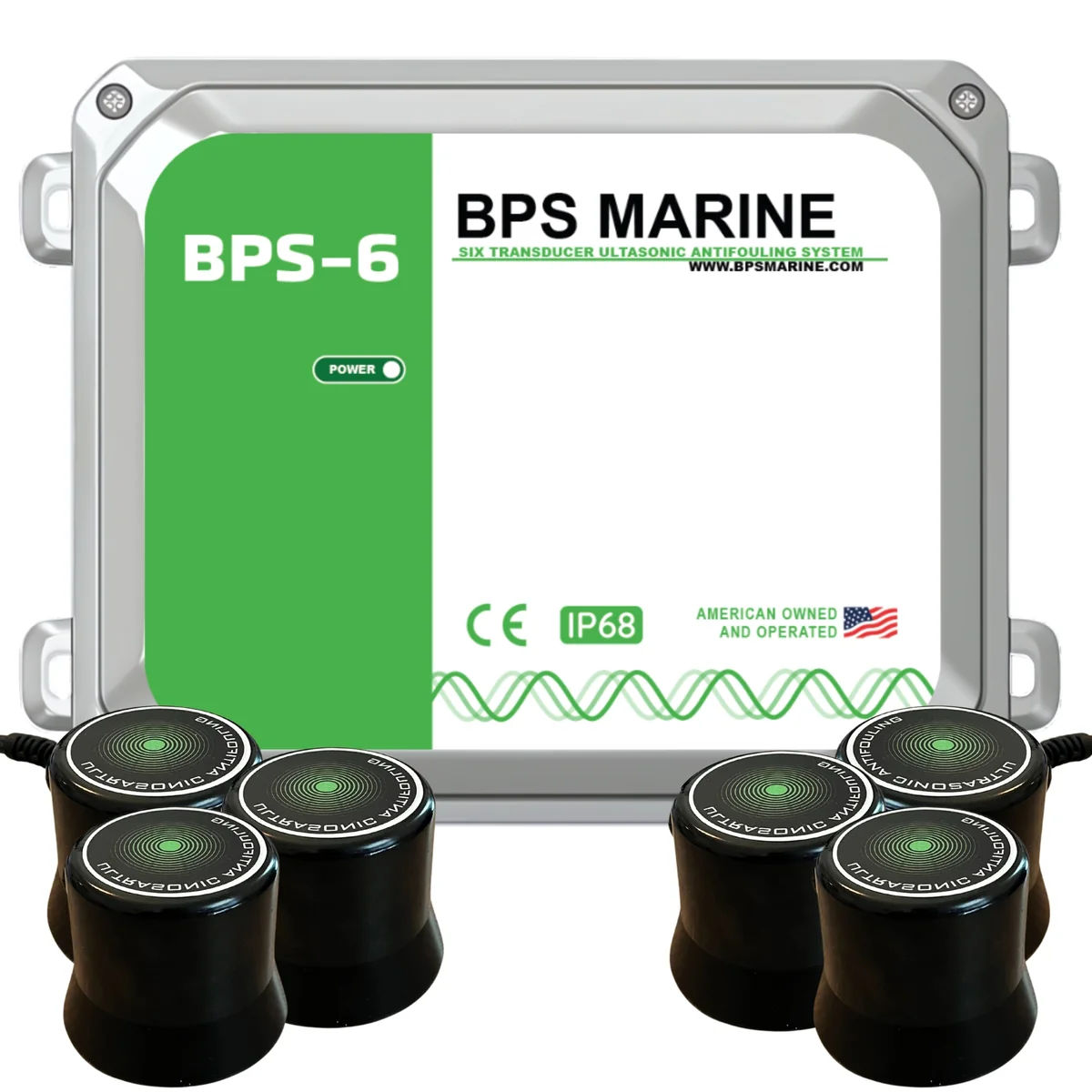

BPS Marine BPS-6 Ultrasonic Antifouling System – 6 Transducers, 12V DC
The BPS Marine BPS-6 is a six-transducer ultrasonic antifouling system designed for hulls up to 65 ft in length. It can provide antifouling protection for hulls, drives, rudders, stabilizers and other underwater components, while additional systems may be combined for larger vessels.
The BPS-6 is also designed as a single-system solution for vessels under 52 ft equipped with pods or stern drives, allowing one system to cover the entire vessel.
The system transmits high-frequency ultrasonic waves through the hull and connected structures. Its multi-frequency ultrasonic sweep algorithm operates between 20 kHz and 42 kHz to help prevent biofouling from attaching to protected surfaces.
Key Features
- Six-transducer ultrasonic antifouling system
- Suitable for hulls up to 65 ft in length
- Suitable as a single-system solution for vessels under 52 ft with pods or stern drives
- Can protect hulls, drives, rudders, stabilizers and other underwater components
- 12V DC operation
- Multi-frequency ultrasonic sweep from 20 kHz to 42 kHz
- Up to 60 W of transducer output
- 15 ft connected signal cable per transducer
- No thru-hull installation required
- Transducers mount directly to the hull surface using the supplied epoxy
- Chemical-free antifouling operation
- Automatic operation with no scheduled maintenance required
Technical Specifications
Specification Value System Type Six-transducer ultrasonic antifouling system Voltage 12V DC Average Power Draw 1.5 Ah Transducer Output Up to 60 W Frequency Multi-frequency ultrasonic sweep, 20 kHz–42 kHz Transducer Cable Length 15 ft per transducer Hull Length Up to 65 ft Number of Control Units 1 Number of Transducers 6
Installation
The transducers are installed directly on top of the hull surface using the supplied epoxy, so no thru-hull fittings are required. Each transducer has 15 ft of connected signal cable for routing to the BPS-6 controller.
The BPS-6 controller operates from the boat's existing house battery and uses a two-wire connection to the battery bank or distribution panel.
Package Includes
- 1 × BPS-6 control module with integrated power cable
- 6 × submersible ultrasonic transducers with 15 ft of cable each
- 3 × additional 15 ft extension cables
- 2 × epoxy kits
- 1 × printed installation and operation manual
-
