BPS Marine PRO-16 Ultrasonic Antifouling System – 16 Transducers, 24V DC

ID 1388196

$ 12,192.71

1-2 weeks delivery time

- +

Add to cart

BPS Marine PRO-16 is a sixteen-transducer ultrasonic antifouling system designed to protect hulls up to 150 ft long, as well as drives, rudders, stabilizers and other underwater components. It is also intended as a single-system solution for vessels under 120 ft with inboards or sail drives. The 24V DC system uses a multi-frequency ultrasonic sweep from 20 kHz to 42 kHz, provides up to 120 W of transducer output and has an average power draw of 2 Ah.

Description
Ask a Question

BPS Marine PRO-16 Ultrasonic Antifouling System – 16 Transducers, 24V DC

The BPS Marine PRO-16 is a sixteen-transducer ultrasonic antifouling system designed for hulls up to 150 ft in length. It can provide antifouling protection for hulls, drives, rudders, stabilizers and other underwater components, while additional systems may be combined for larger vessels.

The PRO-16 is also designed as a single-system solution for vessels under 120 ft equipped with inboards or sail drives, allowing one system to cover the entire vessel.

The system emits high-frequency ultrasonic waves through the hull and connected structures. Its multi-frequency ultrasonic sweep algorithm operates between 20 kHz and 42 kHz to help prevent biofouling from attaching to protected surfaces.

Key Features

Sixteen-transducer ultrasonic antifouling system
Suitable for hulls up to 150 ft in length
Suitable as a single-system solution for vessels under 120 ft with inboards or sail drives
Can protect hulls, drives, rudders, stabilizers and other underwater components
24V DC operation
Multi-frequency ultrasonic sweep from 20 kHz to 42 kHz
Up to 120 W of transducer output
15 ft connected signal cable per transducer
No thru-hull installation required
Transducers mount directly to the hull surface using the supplied epoxy
Chemical-free antifouling operation
Automatic operation with no scheduled maintenance required

Technical Specifications

Specification	Value
System Type	Sixteen-transducer ultrasonic antifouling system
Voltage	24V DC
Average Power Draw	2 Ah
Transducer Output	Up to 120 W
Frequency	Multi-frequency ultrasonic sweep, 20 kHz–42 kHz
Transducer Cable Length	15 ft per transducer
Additional Extension Cables	8 × 15 ft
Hull Length	Up to 150 ft
Number of Control Units	1
Number of Transducers	16

Installation

The transducers are installed directly on top of the hull surface using the supplied epoxy, so no thru-hull fittings are required. Each transducer has 15 ft of connected signal cable for routing to the controller.

The controller operates from the boat's existing house battery and uses a two-wire connection to the battery bank or distribution panel.

Package Includes

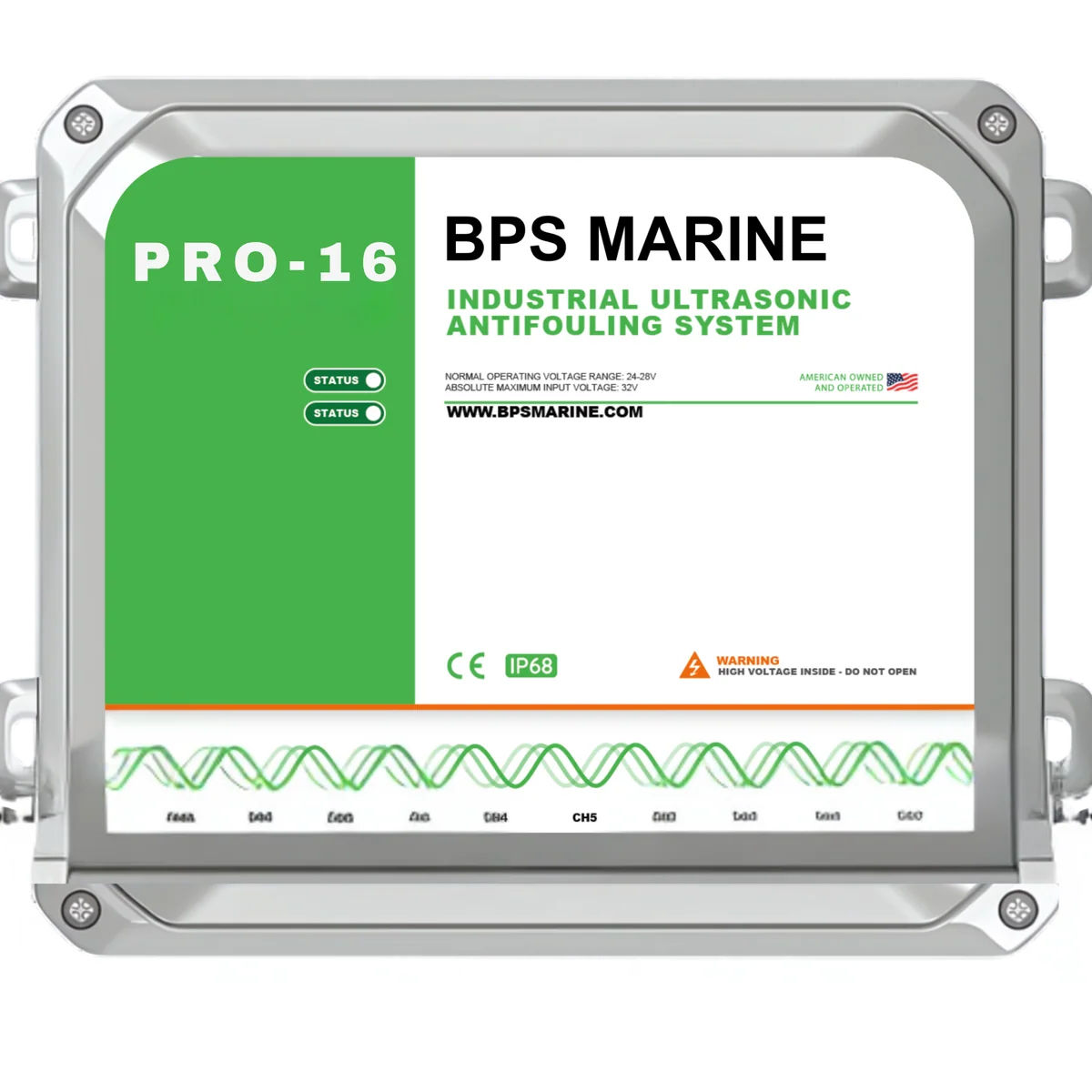

1 × PRO-16 control module with integrated power cable
16 × submersible ultrasonic transducers with 15 ft of cable each
8 × additional 15 ft extension cables
4 × epoxy kits
1 × printed installation and operation manual
