ID
1388187
$ 740.89
1-2 weeks delivery time
-
+
BPS Marine BPS-1 is a single-transducer ultrasonic antifouling system designed to protect hulls up to 20 ft long, as well as drives, rudders, stabilizers and other underwater components. The 12V DC system uses a multi-frequency ultrasonic sweep from 20 kHz to 42 kHz with transducer output up to 60 W and an average power draw of 0.25 Ah. The kit includes one BPS-1 control module with integrated power cable, one submersible ultrasonic transducer with 15 ft of cable, epoxy kit and printed installation and operation manual.
- Description
- Ask a Question
-
BPS Marine BPS-1 Ultrasonic Antifouling System – 1 Transducer, 12V DC
The BPS Marine BPS-1 is a single-transducer ultrasonic antifouling system for hulls up to 20 ft in length. It can also be used to provide antifouling protection for drives, rudders, stabilizers and other underwater components, and may be combined with additional systems for larger vessels.
The system operates by transmitting high-frequency ultrasonic waves through the hull and connected structures. A multi-frequency sweep algorithm continuously operates between 20 kHz and 42 kHz to help prevent biofouling from attaching to protected surfaces.
Key Features
- Single-transducer ultrasonic antifouling system
- Suitable for hulls up to 20 ft in length
- Can be used for hulls, drives, rudders, stabilizers and other underwater components
- 12V DC operation
- Multi-frequency ultrasonic sweep from 20 kHz to 42 kHz
- Up to 60 W transducer output
- 15 ft signal cable supplied with the transducer
- No thru-hull installation required
- Transducer mounts directly to the hull surface using the supplied epoxy
- Automatic operation with no scheduled maintenance required
- Chemical-free antifouling technology
Technical Specifications
Specification Value System Type Single-transducer ultrasonic antifouling system Voltage 12V DC Average Power Draw 0.25 Ah Transducer Output Up to 60 W Frequency Multi-frequency ultrasonic sweep, 20 kHz–42 kHz Transducer Cable Length 15 ft Hull Length Up to 20 ft Number of Control Units 1 Number of Transducers 1
Installation
The ultrasonic transducer is installed directly on top of the hull surface using the supplied epoxy, so no thru-hull fitting is required. The transducer includes 15 ft of connected signal cable for routing to the BPS-1 controller.
The controller operates from the boat's existing house battery and uses a simple two-wire connection to the battery bank or distribution panel.
Package Includes

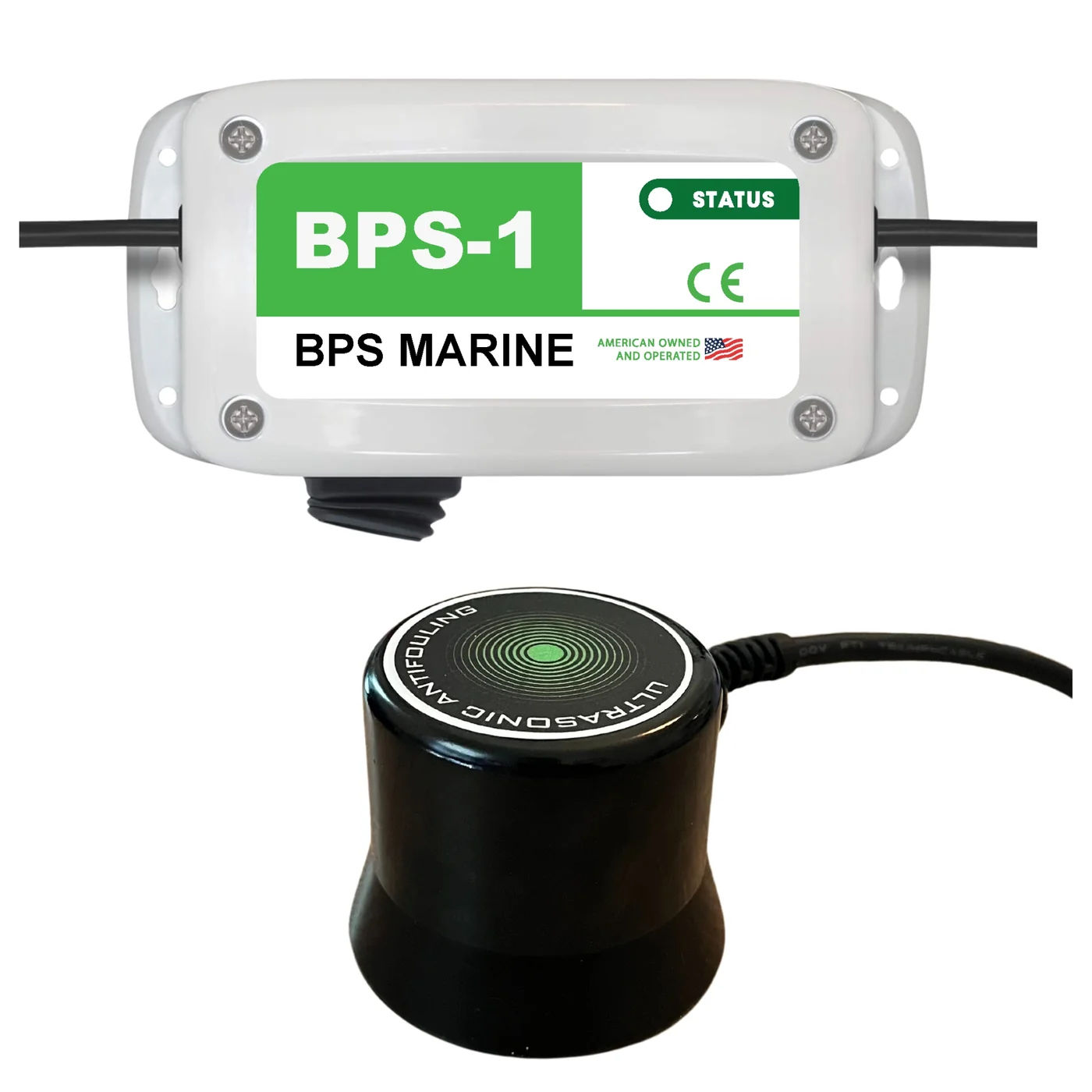

- 1 × BPS-1 control module with integrated power cable
- 1 × submersible ultrasonic transducer with 15 ft of cable
- 1 × epoxy kit
- 1 × printed installation and operation manual
-
