The Osculati Hinged Anchor Bow Roller range is manufactured from polished AISI 304 stainless steel and fitted with durable polyamide (nylon) rollers for smooth anchor deployment and retrieval. Designed for DELTA, BRUCE, TREFOIL, CQR and SOC anchors, the range includes both compact lightweight and heavy-duty hinged models with plate thicknesses from 3 mm to 5 mm. Available in seven sizes, the rollers accommodate anchors from 10 kg to 30 kg and provide a robust anchoring solution for a wide variety of vessels.
- Description
- Ask a Question
-

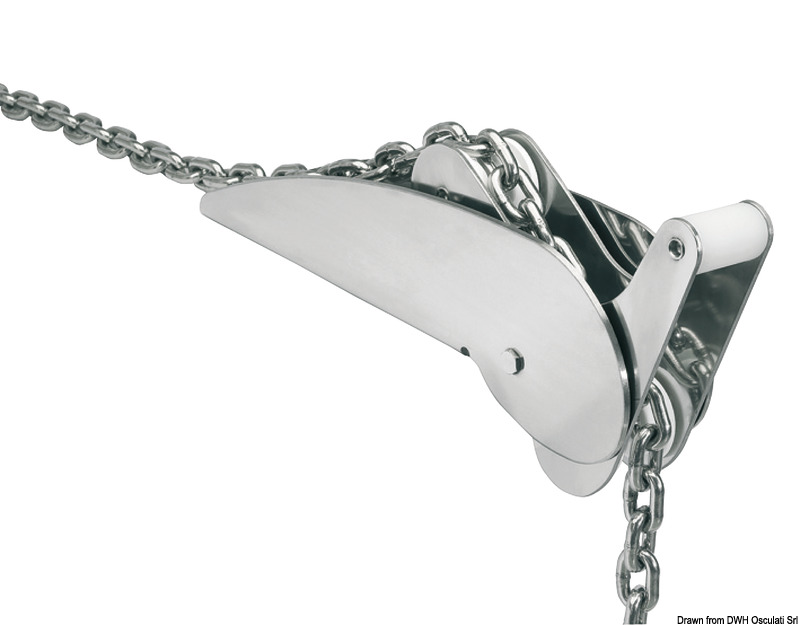

Osculati Hinged Stainless Steel Anchor Bow Roller – For DELTA, BRUCE, TREFOIL, CQR & SOC Anchors up to 30 kg
The Osculati Hinged Anchor Bow Roller range is designed to facilitate anchor deployment, retrieval and stowage while providing reliable support for a wide variety of anchor types. The hinged construction assists anchor handling and helps position the anchor correctly during operation.
Manufactured from polished AISI 304 stainless steel and fitted with polyamide rollers, these bow rollers offer smooth anchor movement, excellent corrosion resistance and long service life in marine environments. The range includes compact lightweight versions for smaller installations and heavy-duty models for larger anchors and demanding anchoring systems.
Key Features
- Polished AISI 304 stainless steel construction
- Hinged design for improved anchor handling
- Polyamide (nylon) rollers
- Suitable for DELTA, BRUCE, TREFOIL, CQR and SOC anchors
- Available in compact and heavy-duty versions
- Supports anchors from 10 kg to 30 kg
- Corrosion-resistant marine-grade construction
- Designed for anchor deployment and retrieval systems
Heavy-Duty Models
Osculati Code A (mm) B (mm) C (mm) Plate Thickness (mm) Max Anchor Weight (kg) Weight (kg) 01.333.01 330 70 117 4 10 3.0 01.333.02 400 70 117 4 15 3.4 01.333.03 495 90 150 5 20 6.7 01.333.04 595 90 150 5 30 7.5 01.333.05 695 90 150 5 30 8.6
Compact Lightweight Models
Osculati Code A (mm) B (mm) C (mm) Plate Thickness (mm) Max Anchor Weight (kg) Weight (kg) 01.333.10 300 80 80 3 10 2.7 01.333.11 400 80 80 3 15 3.0
Technical Specifications
- Material: AISI 304 stainless steel
- Finish: Polished
- Roller Material: Polyamide (nylon)
- Construction Type: Hinged bow roller
- Plate Thickness: 3 mm to 5 mm
- Maximum Anchor Capacity: 10 kg to 30 kg
- Application: Anchor deployment and retrieval systems
Compatible Anchor Types
- DELTA anchors
- BRUCE anchors
- TREFOIL anchors
- CQR anchors
- SOC anchors
Applications
- Bow-mounted anchoring systems
- Anchor deployment and retrieval
- Sailing boats
- Motor boats
- Cruising yachts
- Marine anchoring installations
-
