The Maxwell 24V Reversing Solenoid Dual Relay for RC12 HD 2 kW DC (Vetus SP5107) is a heavy-duty reversing solenoid designed for 24 V DC marine winch applications. Engineered for dual-direction motor control, it is specifically specified for Maxwell RC12 HD 2 kW DC windlass systems and delivers reliable performance, robust durability, and secure operation in demanding marine environments.
- Description
- Ask a Question
-

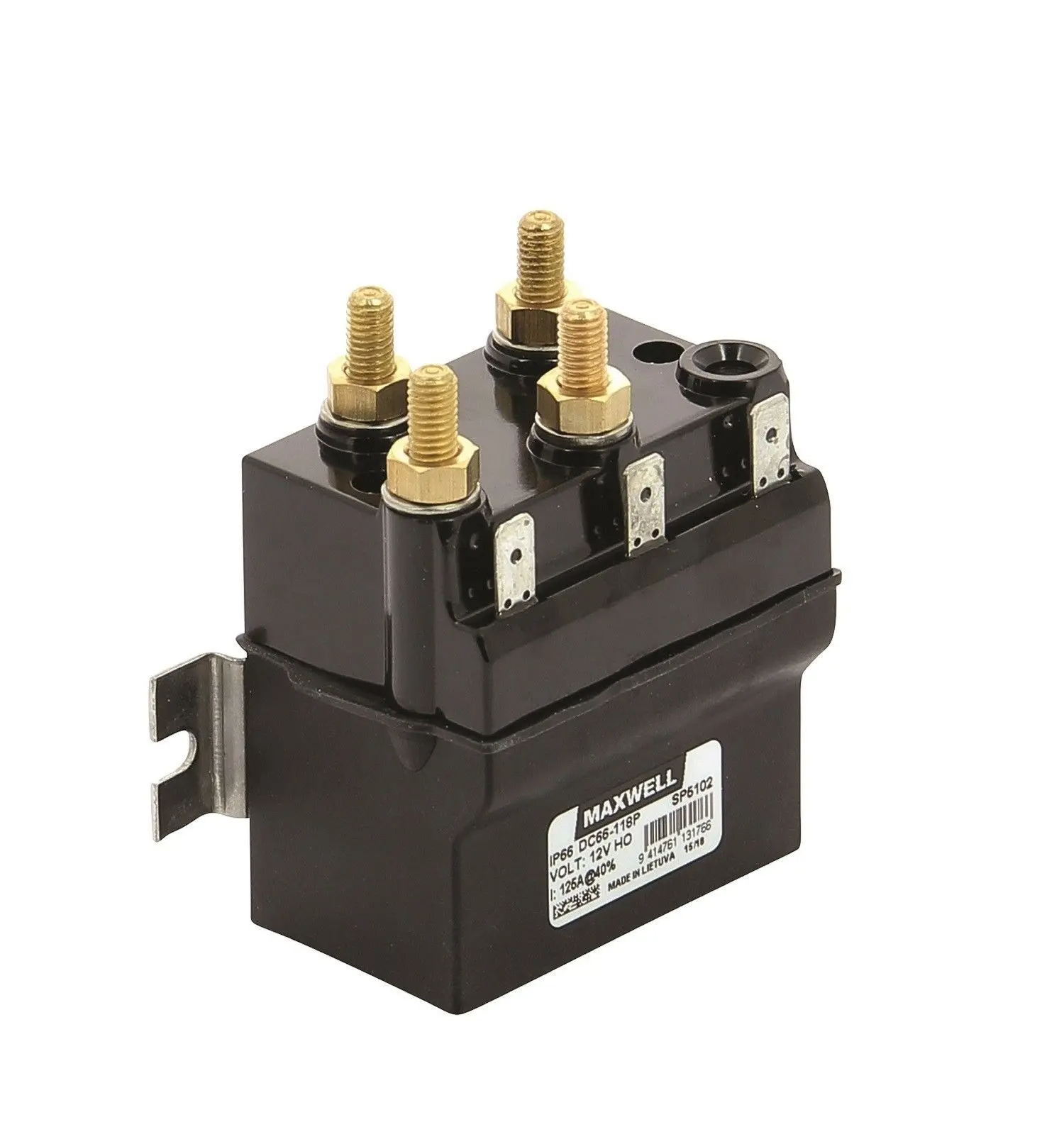

Maxwell 24V Reversing Solenoid Dual Relay for RC12 HD 2 kW DC (Vetus SP5107)
Specification Details Article Number Vetus SP5107 Product Type Reversing solenoid Relay Configuration Dual relay Operating Voltage 24 V DC Application Directional control of winch motors Compatible Windlass Models Maxwell RC12 HD 2 kW DC Enclosure Rating IP66 Approximate Dimensions 110 × 130 × 75 mm Approximate Weight 1.1 kg
Technical Features
- Heavy-duty 24 V DC reversing solenoid for marine winch systems
- Dual-relay design enabling reliable Up/Down motor direction switching
- IP66-rated enclosure protects against dust and water ingress
- Designed for continuous operation in harsh marine environments
- Robust construction suitable for high-load windlass applications
Applications
- Directional control of Maxwell RC12 HD 2 kW DC windlass motors
- Integration with remote control panels, AutoAnchor™ rode counters, and handheld remote controls
- Marine anchoring systems requiring reliable 24 V dual-direction motor control
Benefits
- High durability and long service life in demanding marine conditions
- Reliable and precise control of anchor deployment and retrieval
- Compact form factor for straightforward integration into marine electrical systems
-
