ID
1282213
$ 143.16
1-2 weeks delivery time
-
+
The Maxwell Single Direction Solenoid 12V for Capstan Winches (Vetus SP1393) is a robust control relay designed for applications where only single-direction motor rotation is required, such as capstan winches. Operating on 12 V DC, this single-direction solenoid provides reliable motor control in demanding marine environments. It is commonly referred to as Maxwell SW80-2200P and is intended for integration with remote panels and other control systems used in marine winch installations.
- Description
- Ask a Question
-

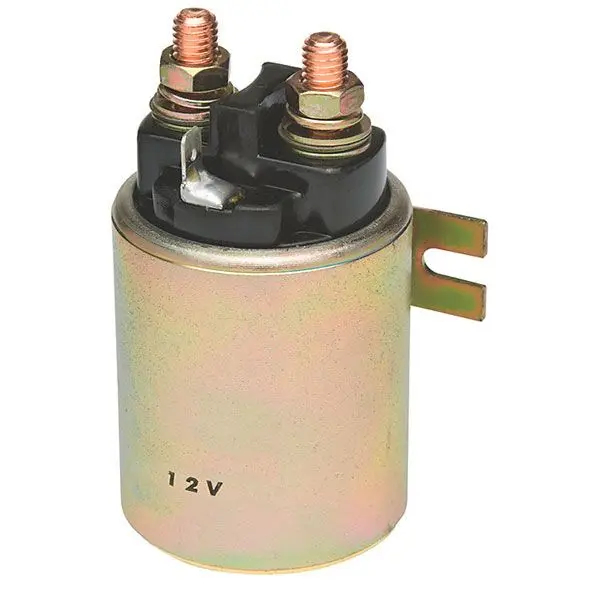

Maxwell Single Direction Solenoid 12V for Capstan Winches (Vetus SP1393)
The Maxwell SP1393 is a single-direction solenoid designed for marine applications where only one direction of motor rotation is required. It is intended for use with capstan winches and similar equipment that does not require bidirectional control.
Operating on a 12 V DC supply, this solenoid provides dependable switching performance for winch motor control in demanding marine environments. The unit is also known as Maxwell SW80-2200P and is compatible with a wide range of Maxwell capstan winch installations.
Single Direction Solenoids should be used where only single-direction motor rotation is necessary, such as capstan winches. The SP1393 is suitable for integration with remote control panels, rode counters, and other external control systems used to manage winch operation.
Designed for marine use, the solenoid features a compact construction for easy integration and is built to withstand harsh onboard conditions. Its enclosure is rated to IP66, providing a high level of protection against dust and water ingress.
Key Features
- Single-direction solenoid for marine winch applications
- Designed for capstan winches and single-rotation motors
- 12 V DC operating voltage
- Suitable for use with remote panels and control systems
- Compact form factor for easy installation
- Marine-grade construction for demanding environments
- IP66-rated enclosure
Technical Specifications
Parameter Value Article Vetus SP1393 Alternative Designation Maxwell SW80-2200P Type Single direction solenoid Application Capstan winches, single-direction motors Voltage 12 V DC Relay Type Single Terminals 0 Protection Rating IP66 -
